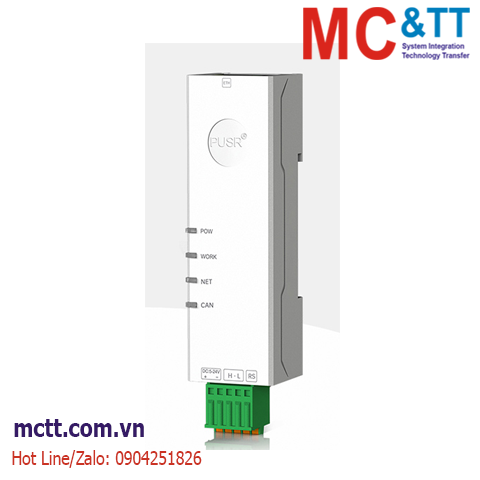

| Power Supply |
| Service voltage |
DC:5~24 V, 12V 1A recommended |
| Power dissipation |
No load--Average power consumption: 31.6mA/12V; maximum power consumption: 34.6mA/12V.
Full load--Average power consumption: 32.8mA/12V; maximum power consumption:35.7mA/12V. |
| Construction |
| Size |
74*24*22mm (L * W * H) |
| Installation method |
Rail mounting |
| Reload key |
Press and hold to restore factory settings |
| Ethernet port |
| Specification |
RJ45, 10/100Mbps, Cross-Direct Adaptive |
| CAN port |
|
CAN port
Wiring definition |
H: CAN_H signal line connection terminal
L:CAN_L signal line connection terminal
RS: 120Ω termination resistance of CAN
（Connect RS to L, and then the 120Ω resistor inside the module will be incorporatedintotheCANbus） |
| Baud rate |
5kbps~1000 Kbps, support custom baud rate |
| Terminal resistance |
Built-in CAN bus 120Ω termination resistor |
| Protection |
| Static |
GB/T 17626.2-2018, Level 3, class B, air discharge 8KV, contact discharge 6KV |
| Surge |
GB/T 17626.5-2019,Level 3, class B, Differential mode 1KV, Common mode 2KV, CANport commonmode 2KV |
| Burst |
GB/T 17626.4-2018, Level 3, class B, Power circuit 2KV, Ethernet port circuit 1KV, CANcircuit 1KV |
| Indicator light |
| Power supply |
Pow, red indicator light |
| Work |
Work, green indicator light. Flashing: normal operation of equipment,frequency 1s;
Strobe: Passive error state of CAN bus;
Constant light: CAN bus operation abnormal |
| Ethernet port |
NET, green indicator light. Flashing: indicates that data is being received at the networkport |
| CAN port |
CAN, green indicator light. Flashing: indicates that CAN port has data being received |
| Work environment |
| Working temperature/ humidity |
Temperature: -40°C; Humidity: 5%~95% RH(no condensation) |
| Storage temperature/humidity |
Temperature: -40°C to 105°C ; Humidity: 5%~95% RH(no condensation) |
| Software function |
| Ethernet protocol |
TCP server、TCP client、UDP server、UDP client |
| Conversion of mode |
Transparent conversion, Transparent band ID conversion, Standard conversion |
| CAN ID |
Support standard frame, remote frame |
| Frame ID filtering |
Support standard frames only, remote frames only, custom input frame IDs (up to 14 groups) |
| Serial packet length |
Support custom packet length |
| Switch direction |
Support bi-directional conversion, only network port to CAN, only CAN to network port |
| Work pattern |
Normal, Loop, Hear Only |
| Firmware upgrade |
Support firmware upgrade on PC |
| Parameter configuration |
AT command, PC software configuration |
| Heartbeat packet |
Support network heartbeat packet, CAN port heartbeat packet |
| Registration packet |
Support custom, MAC registration package; optional connection sending, data carrying, full registration |
