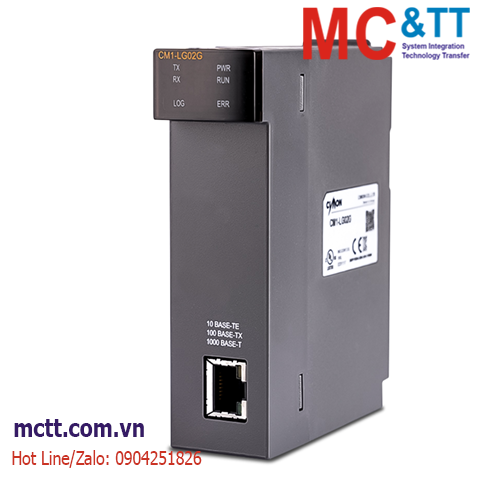

Operating Temperature |
-10°C – 65°C |
|
Storage Temperature |
-25°C – 80°C |
|
Processing System |
Multi-task (High-speed, multiprocessing) |
|
(*) Memory Capacity |
4 GB (2 GB for logging data) |
|
Function Setting |
Using CICON software (PLC Loader Program) |
|
CM1-CPU |
Connection Method |
Connection with RS-232C port or USB at CPU module
Passthru connection through communication module (EC Series) |
|
Configuration |
Network setting, logging type, logging cycle, data list, Log file ID (*) |
|
Monitoring |
The number of clients, communication status, logged data transmission status, progress of data logging, CPU status, memory consumption(%), memory overflow (Automatic dump, deletion) status, error information |
|
Communication Function |
Communication Standard |
Ethernet 10/100 Mbps or 1 Gbps |
|
Protocol |
TCP, CIMON HMI Ethernet Protocol |
|
Access Limitation |
Simultaneous connections of up to 5 clients
(Up to 3 clients can simultaneously access when using FTP feature) |
|
Comm. Cable |
Over CAT.5 STP (Shielded Twisted pair) cable |
|
Max. Distance |
Maximum 100 m for preliminary physical connection with the network device (host system, hub, router, etc.) |
|
Logging Function |
Logging Type |
Event Sampling, Trigger Monitoring (*) |
|
Range of Cycle |
1 – 327,67 (x L ms)
L(*) = Time interval scale (1, 10, 100),
The value is fixed at L = 10 in under V2.0 |
|
Range of Deadband |
0 – 65535(*)
The value is fixed at ‘0’ in under V2.0 |
|
Logging Device Type |
X, Y, M, L, K, F, T, TC, TS, C, CC, CS, S, D, Z, R Device in PLC CPU |
|
Data Type |
Bit, Byte, Word, DWord, DDWord |
|
Data Storage |
Non-volatile memory (ROM) storage
(Does not require a battery) |
|
Data Capacity |
24Byte for saving in the device type |
|
Data Managing |
Storage Method |
Event sampling: Saving data by date/hour
Trigger monitoring (*): Saving data by file ID
(Including time information) |
|
Delete Method |
Automatic delete: The oldest data is deleted when
memory is at capacity (Overflown)
Manual delete: All logged data, (*) event sampling log data, (*) trigger monitoring log data |
|
Compatible Host System |
SCADA V3.90 and above version including ‘Historian’ feature
Recommended system requirements: 64-bit version of Windows, 8 GB RAM |
|
Range of Time Synchronization
Frequency |
1 – 32767 (x10 sec) |
|
Error Display |
LED, Display error code
(LG02G configuration/monitoring window in CICON) |
|
Comm. Status Display |
LED, Display error code
(LG02G configuration/monitoring window in CICON) |
|
Number of I/O points |
16 points
(Input 16 points/output 16 points) |
|
Current Consumption |
136 mA |
|
Weight (g) |
113.5 |
