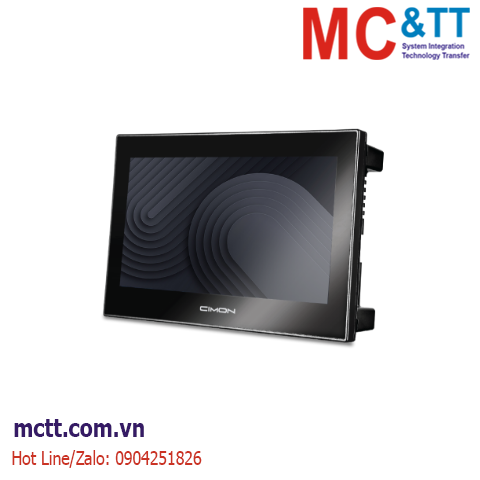

Màn hình cảm ứng HMI/Xpanel 7 inch Cimon CM-nXT07-D (2*COM, 2*Ethernet, 1 SD Slot, USB Host, Audio)
Introducing the Xpanel eXT and nXT series, our advanced industrial HMI(Human Machine Interface) solutions that set a new standard for performance and usability. Paired with our innovative Canvas HMI software, the Xpanel eXT and nXT series offer a seamless and efficient user experience by combining industrial-grade touch technology, powerful embedded OS hardware with a quad-core CPU, and an intuitive runtime platform. The Xpanel eXT and nXT series are engineered to optimize and streamline industrial operations. Elevate your HMI experience today.
Its all-aluminum enclosure provides rugged durability and resistance to extreme temperatures and harsh conditions.
The Xpanel nXT series is UL Class 1 Div 2 certified and UL listed for type 4X and type 12, making it suitable for use in hazardous locations. In addition, its front panel is IP68 rated for protection against dust and water ingress, and its rear panel is IP20 rated.
A sunlight readable display, with up to 1000 nits of brightness, makes the Xpanel nXT series perfect for outdoor applications. This allows for clear visibility even in bright ambient lighting, ensuring that operators can always see important information and make accurate decisions.
The capacitive touch interface of the Xpanel nXT series is intuitive and easy to use, providing a smooth and responsive user experience. With a wide temperature range of -20 to 65 degrees Celsius, you can use it in any environment.
Tính năng
- Our Flagship HMI display,
- Industrial-grade capacitive touch screen,
- Quad-core CPU, embedded OS
- a rugged IP68, UL Type 4X/12 rated front panel with aluminum case.
- TUL Class 1, Division 2 certified,
- Compatible with CIMON Canvas HMI visualization software, which is user-friendly for all skill levels.
Thông số kỹ thuật
| LCD Size |
7" |
| LCD Type |
TFT Color |
| Colors |
16.7M colors |
| Resolution |
800 x 480 |
| Backlight |
LED |
| Luminance |
1000 cd/m² |
| Backlight Lifetime |
50,000 hours |
| Touch Panel |
5 Points Capacitive |
| Memory |
1 GB DDR3 |
| Storage |
8 GB eMMC |
| Operating System |
Embedded Linux |
| Programming Software |
Canvas |
|
Interface |
SD Card |
1 SD Slot |
| COM1 |
RS-422/485 |
| COM2 |
RS-232 |
| Ethernet |
10/100/1000 BaseT 2 Ports |
| USB Host |
1 Port |
| Tool Port |
1 USB Device |
| Audio |
1 Port |
| Front Bezel |
Aluminum |
| Input Power |
DC 24 V (Class 2) |
| Power Consumption |
9 W (MAX : 12 W) |
| Item Weight |
0.879 kg (1.94 lbs) |
| Dimension (mm) |
188.95 x 130.95 x 53.4 |
| Panel Cut (mm) |
177 x 119 |
|
Certifications |
UL |
UL61010-1 / UL61010-2-201 (E231117) |
| UL Hazardous |
UL 121201 (E527727) |
| CE |
Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| FCC |
The 47 CFR, Part 2, Part 15, and Part 17 of FCC Requirement |
| KC |
Registration of Broadcasting and Communication Equipments |
|
Protection Class |
IP68 (front), IP20 (rear) |
| Type : 4X, 12 |
| Operating Temperature |
-20°C – 65°C |
| Storage Temperature |
-20°C – 65°C |
| Operating Humidity |
10% – 90% RH (below 29°C, no dew condensation) |
| Storage Humidity |
10% – 90% RH (below 39°C, no dew condensation) |
| Environment Condition |
800 hPa – 1114 hPa (2000 m/6,500 ft or less) |
| Dust |
≤ 0.1 mg/m³ (Conductive dust is not allowed) |
| Pollution Degree |
≤ Pollution degree 2 |
|
Vibration Resistance |
JIS B 3502, IEC/EN 61131-2 compliant |
| 5 – 9 Hz Single amplitude: 3.5 mm |
| 9 – 150 Hz Fixed acceleration: 9.8 m/s² |
| X, Y, Z directions for 10 cycle (approx. 100 min.) |
|
Shock Resistance |
JIS B 3502, IEC/EN 61131-2 compliant |
| 147 m/s², X, Y, Z directions for ±3 times (Total 18 times) |
| Noise Resistance |
Impulse, EFT/Burst, Surge, ±2 KV, 1 us |
|
Static Discharge Resistance |
Contact Discharge 4 kV (IEC 61000-4-2) |
| Air Discharge 8 kV (IEC 61000-4-2) |
Thông tin đặt hàng
7” TFT, DC24V, 2 Serial, 2 Ethernet, Embedded Linux, UL Hazardous Class1 Div2
