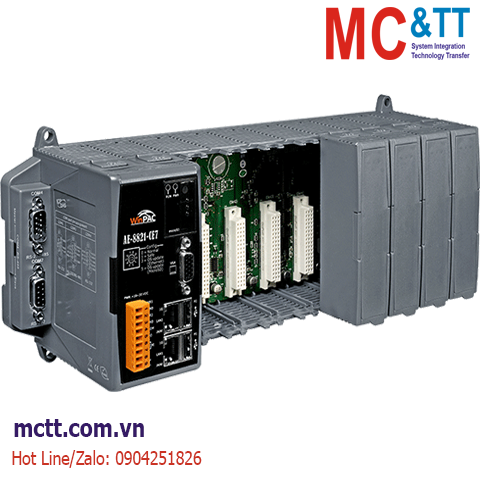

Bộ lập trình nhúng AVEVA Edge PAC 300 tag CPU Cortex-A8 + WinCE 7.0 +8 khe cắm module I/O ICP DAS AE-8821-CE7 CR
Features
• AVEVA Edge 300 tags runtime license ready
• Windows Embedded Compact 7 Operating System
• RTC (Real-time clock)
• 64-bit Hardware Serial Number for Software Protection
• 8 Slots for High Profile I/O Modules
• Various Communication Interfaces
‣ 2 x 10/100/1000BASE-T Ethernet Port
‣ 4 x Serial Ports (RS-232/485)
‣ 2 x USB 2.0 (host)
• Redundant Power Input
Introduction
The AE-8821-CE7 is CE7 based WinPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU and a variety of input/output ports (USB, Ethernet, RS-232/485). Local 1 I/O slot is available to use ICP DAS I-8K and I-87K series I/O modules and remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.
This WinPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, WinPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Application
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number |
Yes, for software Copy Protection |
| System Memory |
512 MB DDR3 |
| Storage |
Flash: 256 MB; 4 GB miicroSD card (up to 32 GB) |
| Non-Volatile Memory |
MRAM: 512 KB; EEPROM: 16 KB |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Resolution |
800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators |
| Status |
1x Power, 1 x System/Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
8 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption |
9.6 W (0.4 A @ 24 VDC) |
| Mechanical |
| Dimensions (mm) |
95 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail, wall mounting |
| Ingress Protection Rating |
IP30 (Aluminum) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| AE-8821-CE7 CR |
AVEVA Edge (300 tags) ready, 8-slot WinPAC (WinCE 7.0) (RoHS) |
