Card ISA 16 kênh AI 12 bits, 125 kS/ + 2 kênh AO + 16 kênh DI/DO + 1 kênh Timer/Counter/Frequency ICP DAS A-823PGH/S CR
Features
- 12-bit A/D converter
- 12-bit D/A converter
- 16 single-ended or 8 differential input channels
- 125 k/s sampling rate
- Two 12-bit AO channels
- AO Range: 0 ~ 5 V , 0 ~ 10 V, 0 ~ Ext Ref, +/- 5 V, +/- 10 V, +/- Ext Ref
- Software programmable gain:
- A-823PGL (Low Gain Version ) : 0.5 , 1 , 2 , 4 , 8
- A-823PGH(High Gain Version) : 0.5 , 1 , 5 , 10 , 50 , 100 , 500 , 1000
- Interrupt handling
- A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
- A/D data transfer modes : polling , interrupt , DMA
- 16 DI & 16 DO
- 37 pin D-Sub connector
Introduction

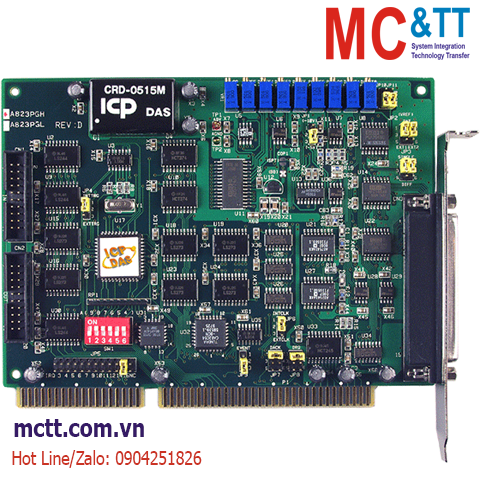

The A-823PGH/L is 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-823PGH/L offer 16 single-ended or 8 differential AIs, plus two channels of AO with 12-bits resolution. In addition, The A-823PGH/PGL has 16 DI, 16 DO , and one timer/counter channel. The A-823PGH Provides gain of 0.5, 1, 5, 10, 50 ,100 , 500 , 1000 while the A-823PGL provides gains of 0.5 , 1 , 2 , 4, 8 . It has a maximum sampling rate of 125 k Sample/Sec., DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.
ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model).
Applications
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
- FFT & frequency analysis
- Transient analysis
- Production test
- Process control
Click to view the Introduction of https://mctt.vn/isa-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1
20-pin box header x 2 |
| Analog Input |
| Channels |
16 single-ended/8 differential |
| Range |
Gain: 0.5, 1, 5, 10, 50, 100, 500 ,1000
Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1 V, ±0.05 V, ±0.01 V, ±0.005 V
Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V |
| Resolution |
12-bit |
| Accuracy |
0.1% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate |
125 kS/s. Max. |
| Overvoltage Protection |
Continuous ±35 Vp-p |
| Zero Drift |
15 ppm/°C of FSR |
| Trigger Mode |
Software, Pacer, External |
| Data Transfer |
Polling, Interrupt(DMA) |
| Analog Output |
| Channels |
2 |
| Range |
± 5 V , ± 10 V, ± Ext Ref, 0 ~ 10 V, 0 ~ 5 V, 0 ~ Ext Ref V |
| Resolution |
12-bit |
| Accuracy |
±6 LSB |
| Response Time |
500 kHz (Typical) |
| Voltage Output Capability |
±5 mA |
| Slew Rate |
0.6 us to 0.01% for full scale step |
| Operation Mode |
Static Update |
| Digital Input |
| Channels |
16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 40 mA
Source: 20 mA |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
1 |
| Type |
5 V/TTL |
| Resolution |
16-bit |
| PC Bus |
| Type |
ISA |
| Data Bus |
8-bit |
| Power |
| Consumption |
960 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
124 X 163 X 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| A-823PGH/S CR |
ISA Bus, 125 kS/s, 16-ch 12-bit AI Multifunction Board (Daughter Board DB-8225) (RoHS)
Includes one CA-3710 D-Sub cable |
