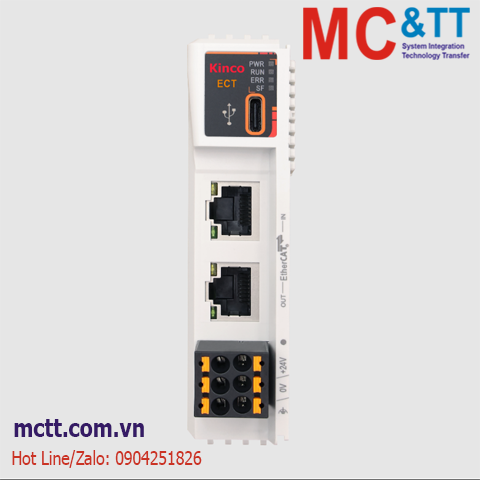

Module mở rộng cổng EtherCAT Kinco RP20C-ECT
To explore more diverse automation application scenarios and provide customers with more comprehensive automation solutions, Kinco has launched the RP20 series bus-based remote I/O system. It is compatible with the newly introduced AK8X0 series bus motion controllers, featuring the same hardware design to enable I/O module interface reuse and mixed module configurations.
Tính năng
- High speed, fast response: Upgraded LVDS+FPAG solution, communication rate up to 100Mbps, achieving μs-level I/O response
- Same solution for reuse: The coupler backplane adopts the same solution as the AK8X0 series PLC backplane, realize IO module interface reuse
- Rich expansion, large capacity: Single coupler supports up to 16 expansion modules, and the expansion I/O point count up to 256 points
- Multi-protocol: Compatible with a variety of industrial communication protocols (such as EtherCAT and CANopen), so the remote I/O can be easily integrated into the existing automation system to meet different application requirements.
- Multi-function: Supports RP20 power supply, DI/O, AI/O, temperature measurement module (RTD/TC) and other functional modules.
Thông số kỹ thuật
| Product List |
| Order Model |
Type |
Description |
| RP20C-ECT |
Coupler |
EtherCAT bus coupler, capable of supporting up to 16 expansion modules. |
| RP20-0016DTP |
Expansion Module |
DO 16*24V DC, PNP. |
| RP20-0016DTN |
DO 16*24V DC, NPN. |
| RP20-1600DT |
DI 16*24V DC, Sourcing/Sinking. |
| RP20-0808DTP |
DI 8*24V DC, Sourcing. |
| DO 8*24V DC, PNP. |
| *RP20-0008DR |
DO 8*Relay output, normally open contacts(NO). |
| RP20-0400TC |
AI 4*TC, thermocouple type: J/K/E/S/T. |
| RP20-0400RD |
AI 4*RTD, sensor type: Pt100/Pt1000/Cu50. |
| RP20-0400IV |
AI 4*IV,4-20mA/±10V/1-5V/±20mA. |
| RP20-0004IV |
AO 4*IV,4-20mA/0-20mA/±10V/1-5V. |
| RP20-0202IV |
AI 2*IV,4-20mA/0-20mA/0-10V/1-5V. |
| AO 2*IV,4-20mA/0-20mA/0-10V/1-5V. |
| RP20-PW |
Power Module,Powered by 24V DC, rated output: 5V DC, 2A. |
*RP20 series IO modules are compatible with AK8X0 series controllers
Thông tin đặt hàng
EtherCAT bus coupler, capable of supporting up to 16 expansion modules
Tài liệu
【Catalog】RP20 series blade-type remote I/O
【User Manual】RP20 series EtherCAT coupler
【User Manual】RP20 series DIO module
【User Manual】RP20 series Analog I/O Module
