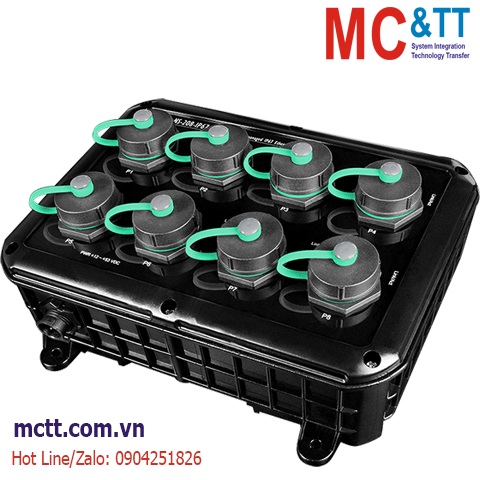

Switch công nghiệp 8 cổng Ethernet IP67 ICP DAS NS-208-IP67 CR

Chia sẻ:
Mã sản phẩm: NS-208-IP67
Thương hiệu: ICP DAS
Tình trạng:

Industrial 8-port unmanaged IP67 Ethernet switch

Liên hệ
Mô tả

Switch công nghiệp 8 cổng Ethernet IP67 ICP DAS NS-208-IP67 CR


• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Rugged RJ-45 Connector for anti-vibration and shock
• IP67 grade protection approval


The NS-208-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock. The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.



LED Indicators
Status PWR, Link/Act
Ports 8 x RJ-45, 10/100Base-TX
Standards IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type Store & forward; wire speed switching
MAC Table 1024
Memory Bandwidth 2 Gbps
Frame Buffer Memory 512 Kbit
Flow Control IEEE 802.3x flow control, back pressure flow control
Isolation 1500 Vrms 1 minute
Reverse Polarity Protection Yes
Input Range +12 ~ +53 VDC
Consumption 0.12 A @ 24 VDC
Casing Plastic
Dimensions (mm) DIN-rail mounting: 190 x 133 x 104 (W x L x H)
Wall mounting: 190 x 155 x 104 (W x L x H)
Installation DIN-rail mounting or wall mounting
Ingress Protection Rating IP67 for Operating Temperature -10 °C ~ +60 °C
IP66 for Operating Temperature -40 °C ~ +75 °C
Operating Temperature -10 °C ~ +60 °C (Protection rating IP67)
-40 °C ~ +75 °C (Protection rating IP66)
Storage Temperature -10 °C ~ +60 °C (Protection rating IP67)
-40 °C ~ +75 °C (Protection rating IP66)
Humidity 100% RH for Operating Temperature -10 °C ~ +60 °C
10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C




Ordering Information

NS-208-IP67     CR  Industrial 8-port unmanaged IP67 Ethernet switch (RoHS)
Includes 4SASO-0001 (IP67 RJ-45 Plug) x 8, 4SASO-0004 (Cap with Tether) x 8 and 4SIO1K0000016 (IP67 Power Plug) x 1
