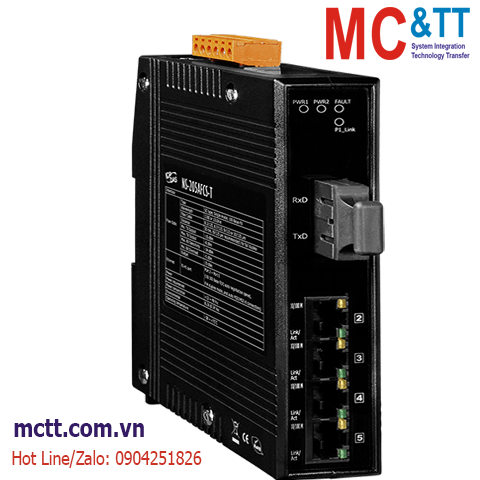

Switch công nghiệp 4 cổng Ethernet + 1 cổng Quang (Dual Fiber, Single Mode, SC, 30KM) ICP DAS NS-205AFCS-T CR

Chia sẻ:
Mã sản phẩm: NS-205AFCS-T
Thương hiệu: ICP DAS
Tình trạng:

4-port 10/100 Mbps Ethernet with 1 fiber port Switch (Single mode, SC connector), +12 VDC ~ +48 VDC

Liên hệ
Mô tả

Switch công nghiệp 4 cổng Ethernet + 1 cổng Quang (Dual Fiber, Single Mode, SC, 30KM) ICP DAS NS-205AFCS-T CR


  • Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Full duplex IEEE 802.3x
  • Automatic MDI/MDI-X crossover for plug-and-play
  • Store-and-forward architecture
  • Redundant dual +12 ~ 48 VDC power inputs
  • Single-mode, SC Connector Fiber supports
  • Broadcast Storm protection


The NS-205AFCS-T is a 4-port unmanaged Ethernet with 1 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. The NS-205AFCS-T provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.



EMS Protection
ESD (IEC 61000-4-2) ± 4 kV Contact
LED Indicators
Status PWR1, PWR2, PWR_Fault, Link/Act, 10/100M
Ports 4 x RJ-45, 10/100Base-TX
Standards IEEE 802.3, 802.3u, 802.3x
Processing Type Store & forward
MAC Table 2048
Frame Buffer Memory 1 Mbit
Flow Control IEEE 802.3x flow control
Isolation 1500 Vrms 1 minute
Ports 1 x 100 Base-FX, SC connector
Mode Single-Mode
Fiber Cable 8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance 30 km, (9/125 μm recommended) for full duplex
Wavelength 1300 or 1310nm
TX Output -15 dBm Min.
-8 dBm Max.
RX Sensitivity -34 dBm
RX Overload -5 dBm
Budget 19 dBm
Reverse Polarity Protection Yes
Input Range +12 ~ +48 VDC (Redundant input)
Redundant Power Inputs Yes
Consumption 0.2 A @ 24 VDC
Alarm Output Yes,Relay 2 A @ 30 VDC
Casing Plastic
Dimensions (mm) 31 x 157 x 123 (W x L x H)
Installation DIN-Rail Mounting
Operating Temperature -30 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10% ~ 90% RH, non-condensing




Ordering Information

NS-205AFCS-T     CR  Single-mode 30 km, SC Connector, 4-port 10/100 Mbps with 1 fiber port Switch with Power Input +12 VDC ~ +48 VDC (RoHS)
