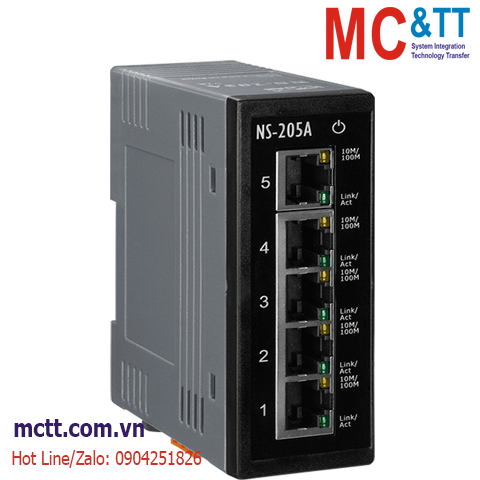

Switch công nghiệp 5 cổng Ethernet ICP DAS NS-205A CR

Chia sẻ:
Mã sản phẩm: NS-205A
Thương hiệu: ICP DAS
Tình trạng:

Unmanaged 5-port Industrial 10/100 Mbps Ethernet Switch, +12 VDC ~ +56 VDC

Liên hệ
Mô tả

Switch công nghiệp 5 cổng Ethernet ICP DAS NS-205A CR


• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Slim packaging fits on your DIN-Rail Mounting
• Each port supports both 10/100 Mbps speed auto negotiation
• Supports +12 VDC ~ +56 VDC
• Supports operating temperatures from -40 °C ~ +75 °C


The NS-205A has 5 Ethernet Switching ports that support 10/100 Base-TX, with a 10/100M autonegotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45. It contains "soft start" function with overload protection, high-low voltage protection. The width of theNS-205A is just 33 mm, so it can be used where space is limited.

The NS-205A provides +12 VDC ~ +56 VDC power input to fit various power source.



LED Indicators
Status Power, Link/Act, 10/100M
Ports 5 x RJ-45, 10/100Base-TX
Standards IEEE 802.3, 802.3u, 802.3x
Processing Type Store & forward; wire speed switching
MAC Table 2048
Frame Buffer Memory 768 Kbit
Flow Control IEEE 802.3x flow control, back pressure flow control
Isolation 1500 Vrms 1 minute
Reverse Polarity Protection Yes
Input Range +12 ~ +56 VDC (Non-isolated)
Consumption 0.1 A @ 24 VDC
Casing Plastic
Dimensions (mm) 33 x 107 x 78 (W x L x H)
Installation DIN-Rail Mounting
Operating Temperature -40 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10% ~ 90% RH, non-condensing




Ordering Information

NS-205A     CR  Unmanaged 5-port Industrial Ethernet Switch with Power Input +12 VDC ~ +56 VDC (RoHS)
