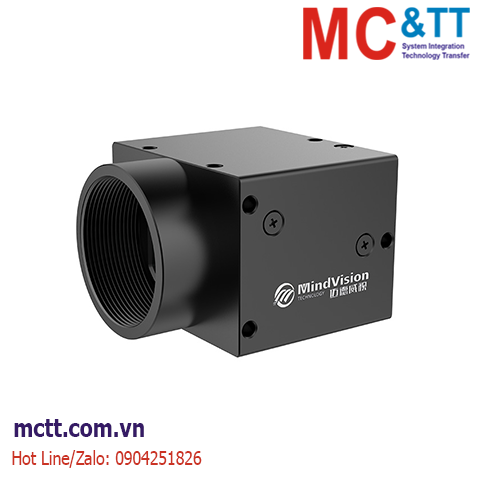

Camera công nghiệp USB3.0 Area Scan 1" CMOS, 3.1um, 12MP, 4080x3072, 30.75fps MindVision MV-SUF1200M
The transmission speed of USB3.0 is greatly improved compared to USB2.0 and GigE cameras. With a transmission bandwidth of 5Gbps and a high-speed sensor, 0.3MP 800FPS cameras can achieve a minimum transmission time of 1.2 milliseconds; 20MP cameras can also reach up to 18FPS; Due to sufficient transmission bandwidth, one computer can be compatible with multiple cameras while ensuring high frame rates; the USB3.0 series has low CPU usage and uses DMA transmission. The 5Gbps data transmission part takes up almost no CPU resources.
Tính năng
- The camera comes with programmable IO.
- Support external trigger strobe to take photos synchronously.
- Support 8bit raw data output
- Fully compatible with GIGE camera's SDK for seamless replacement.
- Multiple cameras on one computer can work stably without dropping or losing frames for a long time
- Support PC Linux system and ARM Linux system, available to be integrated into embedded devices
- Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, Labview and other vision software
Thông số kỹ thuật
| Specifications |
MV-SUF1200C |
MV-SUF1200M |
| Sensor |
1" CMOS |
| Camera type |
Color |
Mono |
| Pixel size |
3.1umx3.1um |
| Effective pixels |
12MP |
| Resolution @ frame rate |
4080x3072MAX@30.75fps |
| Sensitivity |
1420mV/1xs@3200k |
2340mV/1xs@3200k |
| Exposure mode |
Line exposure |
| Signal to noise ratio |
/ |
| Dynamic range |
/ |
| GPIO |
1-way trigger input, 1-way strobe control output; 1-way non-isolated GPIO input and output |
| Acquisition mode |
Continuous/soft trigger/hard trigger |
| Output pixel width |
12bit |
| AD width |
12bit |
| Frame buffer |
128M Bytes |
| Exposure time range |
0.0201~2635.2ms |
0.0201~2635.2ms |
| Maximum gain (multiple) |
64 |
| User EEPROM |
2K Bytes |
| Frequency output format |
Bayer GR 8bit |
Mono 8bit |
| Lens interface |
C/CS interface adapter ring provided |
| Data interface |
USB3.0 |
| Power supply |
5V |
| Power |
<3W |
| Boundary dimension |
29X39.5X32.7(mm)(Lens base and rear shell interface are not included) |
| Weight |
<100g |
| Working temperature |
0~50℃ |
| Working humidity |
20~80%(No Condensation) |
| Storage temperature |
-30~60℃ |
| Storage humidity |
20~95%(No Condensation) |
| Operating system |
WINXP, WIN7/8/10 32&64-bit systems, Linux and ARM Linux drivers (customizable), Android platform driver (customizable) |
| Driver |
Directshow component Halcon special component Labview special driver OCX component TWAIN component |
| Programming language |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
| Other function |
Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc |
Tài liệu
Datasheet
