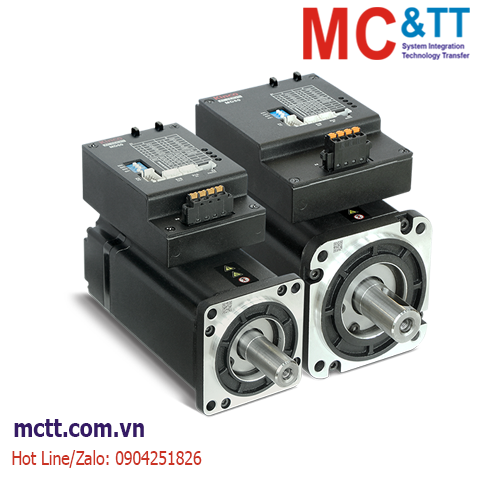

Động cơ Servo DC tích hợp Bộ điều khiển 750W, with brake Kinco MD80-075-DMBK-CA-000
Kinco MD series low-voltage servo all-in-one machine highly integrates servo motor, encoder and servo driver together, greatly reduces the overall size, makes installation more flexible, and simplifies wiring to the extreme without connecting motor line and encoder line. It is more convenient to support IO, Modbus RTU, CANopen, EtherCAT, Profinet and other control modes.
Kinco MD series low-voltage servo can be widely used in various occasions of intelligent logistics, providing the first power to guarantee the efficiency, stability and reliability of intelligent logistics.
Tính năng
- Wide power supply range: support 24~70VDC.
- More power options: more than 200~750W power optional.
- Small size: drive and motor integration.
- 3 times overload capacity.
- Support RS232, CANopen, Modbus RTU, EtherCAT(customizable), Profinet，etc.
- High safety performance: with overvoltage protection undervoltage protection short-circuit protection motor overheating (I²T) protection drive overheating protection and other safety protection measures.
- Full special functions: increase alarm synchronous braking 24V lock power output to enhance battery life and other logistics industry special functions.
Thông số kỹ thuật
| Series |
Model |
Power
(W) |
Power supply |
Max continuous
output current
(rms)(A) |
Current
(PEAK) |
Feedback |
Rated speed
Nn(rpm) |
Rated torque
Tn(Nm) |
| MD series |
MD60-020-DM□K-□A-000 |
200 |
DC24V-70V |
5 |
21 |
Magnetoelectric
encoder |
3000 |
0.64 |
| MD60-040-DM□K-□A-000 |
400 |
10 |
36 |
Magnetoelectric
encoder |
3000 |
1.27 |
| MD80-075-DM□K-□A-000 |
750 |
20 |
80 |
Magnetoelectric
encoder |
3000 |
2.39 |
| mark □=A--without brake
□=B--with brake
□=L--RS232、RS485、Pulse
□=C--RS232、CANopen、Pulse
□=E--RS232、EtherCAT
□=P--RS232、Profinet |
Thông tin đặt hàng
Tài liệu
Kinco Low- voltage Catalog2024
