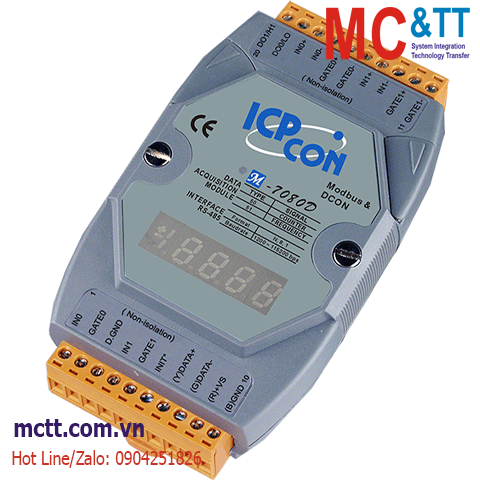

Module RS-485 Modbus RTU 2 kênh đầu vào bộ đếm/tần số (Counter/Frequency) ICP DAS M-7080D-G CR

Chia sẻ:
Mã sản phẩm: M-7080D-G
Thương hiệu: ICP DAS
Tình trạng:

2-ch Counter/Frequency Input Module with LED Display

Liên hệ
Mô tả

Module RS-485 Modbus RTU 2 kênh đầu vào bộ đếm/tần số (Counter/Frequency) ICP DAS M-7080D-G CR

Features

  • 2 Counter/Frequency Inputs
  • Supports 32-bit Counter
  • Isolated or Non-isolated Input
  • Programmable Alarm Output, Digital Filter and Threshold Voltage Level
  • Maximum Frequency of up to 100 kHz
  • Built-in Dual Watchdog

Introduction

The M-7080(D)/M-7080B(D) offers 2 high-speed counter or frequency input channels and 2 digital output channels. Two types of digital input are provided one for isolated input, and the other for non-isolated input. The isolated input provides 3750 Vrms isolation voltage and the non-isolated input provides a programmable threshold voltage level. The built-in digital filter is valid for both non-isolated and isolated input and can filter out noise where the high/low pulse width is smaller than the minimum high/low width of the digital filter. The maximum count is up to 32-bit and the maximum frequency is up to 100 kHz.

The module also provides programmable alarm output with non-isolated open collectors. The M-7080(D)/M-7080B(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the the I-7080(D)/I-7080B(D). The function of The M-7080B(D) is the same as that of the M-7080(D), except that The M-7080B(D) provides a virtual battery backup function in counter mode.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type 5-Digit 7 Segment LED Display
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Digital Input
Programmable Threshold Voltage +0.1 ~ +5 VDC
Digital Output
Channels 2
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ +30 VDC
Load Current 30 mA/Channel
Counter/Frequency/Encoder Input
Channels 2
Type Counter, Frequency
Counter Mode Up
Frequency Mode Yes
Counter/Encoder Bits 32-bit
Sink/Source (NPN/PNP) Sink
ON Voltage Level Isolated: +3.5 ~ +30 VDC
Non-isolated: +2.4 ~ +5 VDC
OFF Voltage Level +1 VDC Max.
Frequency Accuracy 1 Hz or 10 Hz
Individual Channel Configuration No
Max. Speed 100 KHz
Low Pass Filter 2 μs to 65 ms
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 2.2 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

M-7080D-G     CR  2-ch Counter/Frequency Input Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)
