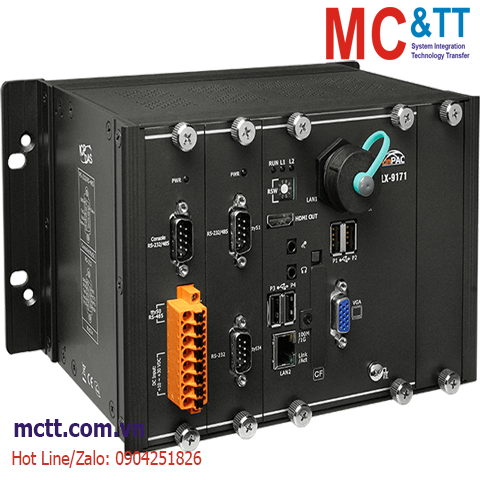

Bộ lập trình nhúng Linux PAC với CPU E3827 + 1 khe cắm module I/O ICP DAS LX-9171 CR
Features
• E3827 (1.75 GHz) CPU
• Linux kernel 4.14.12 Inside
• Supports VGA and HDMI dual display
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number for Software Protection
• Rich I/O Expansion Ability (RS-232, RS-485)
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
Introduction
The LX-9x7x are Linux based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3827 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K and I-97K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules. User's programs can be saved in external storage device, such as CF Card or USB mass storage device.
LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/9000/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly.
Application
https://mctt.vn/lx-9000-icp-das
Specifications
| Software |
| OS |
Linux kernel 4.14.12 |
| Service |
SFTP server, Web server, SSH |
| SDK |
LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit |
| CPU |
E3827 (1.75 GHz, dual core) |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| System Memory |
2 GB DDR3 SDRAM |
| Storage |
• Flash: mSATA slot with one 32 GB SSD
• CF socket with one 16 GB CF card (support up to 32 GB) |
| Non-Volatile Memory |
• MRAM 512 KB
• EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock |
Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer |
Yes, Dual Watchdog Timer |
| Display |
| Signal |
VGA (Analog RGB), HDMI |
| Resolution |
1280 × 1024 to 1920 × 1080 for 16:9 display
640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators |
| Status |
2 x Power
1 x Run (Programmable)
2 x Programmable |
| I/O Expansion |
| I/O Type |
I-9K, I-97K series |
| Slots |
1 |
| COM Ports |
| Ports |
1 x RS-232 (3000 VDC, Isolated)
1 x RS-485 (3000 VDC, Isolated)
1 x RS-232/485 (Console, 3000 VDC, Isolated)
1 x RS-232/485 (3000 VDC, Isolated) |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| Audio |
| Jack |
Microphone-In and Earphone-Out |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX |
| USB |
| Ports |
4 |
| Specification |
USB 2.0 (Host) |
| Power |
| Input Range |
+10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption |
16.6 W (0.69 A @ 24 VDC) |
| Mechanical |
| Dimensions (mm) |
239 x 133 x 164 (W x L x H) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| LX-9171 CR |
1-slot Linux Based PAC with E3827 CPU. Metal Case (RoHS) |
