40G QSFP+ IR4, 2km PSM 1310nm, Duplex LC connector
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

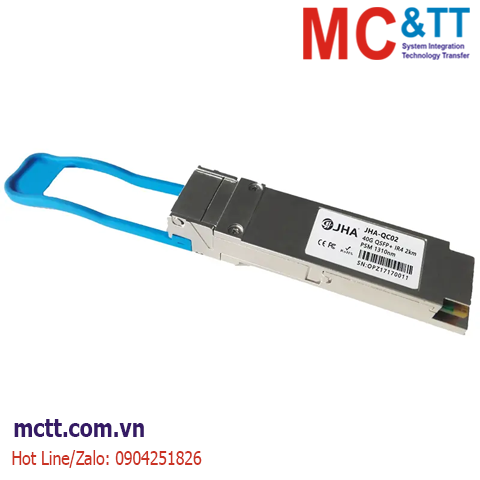

Module quang công nghiệp 40Gb/s QSFP+ IR4, Single-mode, Duplex LC, 1310nm, 2KM JHA Tech JHA-QC02
The JHA-QC02 is a transceiver module designed for 2km(SMF) 160m(MMF)optical communication applications. The design is compliant to 40GBASE-SR4 and 40GBASE-IR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, multimode fiber (MMF) has to be applied in this module.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.
The TQP10 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Tính năng
Thông số kỹ thuật
Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Storage Temperature |
TS |
-40 |
|
+85 |
°C |
Supply Voltage |
VCCT, R |
-0.5 |
|
4 |
V |
Relative Humidity |
RH |
0 |
|
85 |
% |
• Recommended Operating Environment:
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Case operating Temperature |
TC |
0 |
|
+70 |
°C |
Supply Voltage |
VCCT, R |
+3.13 |
3.3 |
+3.47 |
V |
Supply Current |
ICC |
|
|
1000 |
mA |
Power Dissipation |
PD |
|
|
3.5 |
W |
Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.13 to 3.47 Volts
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Note |
Data Rate per Channel |
|
- |
10.3125 |
11.2 |
Gbps |
|
Power Consumption |
|
- |
2.5 |
3.5 |
W |
|
Supply Current |
Icc |
|
0.75 |
1.0 |
A |
|
Control I/O Voltage-High |
VIH |
2.0 |
|
Vcc |
V |
|
Control I/O Voltage-Low |
VIL |
0 |
|
0.7 |
V |
|
Inter-Channel Skew |
TSK |
|
|
150 |
Ps |
|
RESETL Duration |
|
|
10 |
|
Us |
|
RESETL De-assert time |
|
|
|
100 |
ms |
|
Power On Time |
|
|
|
100 |
ms |
|
Transmitter | ||||||
Single Ended Output Voltage Tolerance |
|
0.3 |
|
4 |
V |
1 |
Common mode Voltage Tolerance |
|
15 |
|
|
mV |
|
Transmit Input Diff Voltage |
VI |
150 |
|
1200 |
mV |
|
Transmit Input Diff Impedance |
ZIN |
85 |
100 |
115 |
|
|
Data Dependent Input Jitter |
DDJ |
|
0.3 |
|
UI |
|
Receiver | ||||||
Single Ended Output Voltage Tolerance |
|
0.3 |
|
4 |
V |
|
Rx Output Diff Voltage |
Vo |
370 |
600 |
950 |
mV |
|
Rx Output Rise and Fall Voltage |
Tr/Tf |
|
|
35 |
ps |
1 |
Total Jitter |
TJ |
|
0.3 |
|
UI |
|
Note:
• Optical Parameters(TOP = 0 to 70 °C, VCC = 3.0 to 3.6 Volts)
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
Transmitter | ||||||
Wavelength Assignment |
L0 |
1264.5 |
1271 |
1277.5 |
nm |
|
L1 |
1284.5 |
1291 |
1297.5 |
nm |
|
|
L2 |
1304.5 |
1311 |
1317.5 |
nm |
|
|
L3 |
1324.5 |
1331 |
1337.5 |
nm |
|
|
Side-mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
|
Total Average Launch Power |
PT |
- |
- |
8.3 |
dBm |
|
Average Launch Power, each Lane |
|
-7 |
- |
8 |
dBm |
|
Difference in Launch Power between any two Lanes (OMA) |
|
- |
- |
6.5 |
dB |
|
Optical Modulation Amplitude, each Lane |
OMA |
-4 |
|
+3.5 |
dBm |
|
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane |
|
-4.8 |
- |
|
dBm |
|
TDP, each Lane |
TDP |
|
|
2.3 |
dB |
|
Extinction Ratio |
ER |
3.5 |
- |
- |
dB |
|
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} |
|
{0.25, 0.4, 0.45, 0.25, 0.28, 0.4} |
|
|||
Optical Return Loss Tolerance |
|
- |
- |
20 |
dB |
|
Average Launch Power OFF Transmitter, each Lane |
Poff |
|
|
-30 |
dBm |
|
Relative Intensity Noise |
Rin |
|
|
-128 |
dB/HZ |
1 |
Optical Return Loss Tolerance |
|
- |
- |
12 |
dB |
|
Receiver | ||||||
Damage Threshold |
THd |
3.3 |
|
|
dBm |
1 |
Average Power at Receiver Input, each Lane |
R |
-10 |
|
0 |
dBm |
|
Receive Electrical 3 dB upper Cut off Frequency, each Lane |
|
|
|
12.3 |
GHz |
|
RSSI Accuracy |
|
-2 |
|
2 |
dB |
|
Receiver Reflectance |
Rrx |
|
|
-26 |
dB |
|
Receiver Power (OMA), each Lane |
|
- |
- |
3.5 |
dBm |
|
Receive Electrical 3 dB upper Cutoff Frequency, each Lane |
|
|
|
12.3 |
GHz |
|
LOS De-Assert |
LOSD |
|
|
-15 |
dBm |
|
LOS Assert |
LOSA |
-25 |
|
|
dBm |
|
LOS Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
Note
