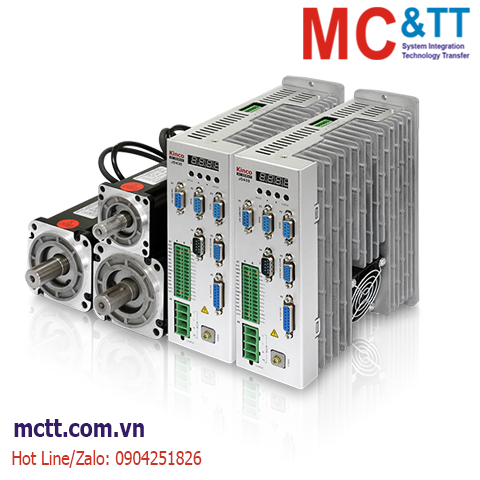

Bộ điều khiển AC Servo Driver AC380V, 5500W, CANopen Kinco JD640-AR-000
Tính năng
- European servo system terminal design, no need for welding, easy connection.
- MODBUS CANopen communication protocol is supported.
- Support master-slave following, multi-axis synchronization.
- Full closed loop control.
- Full open servo parameter setting system, free configuration of servo driver function.
- Mechanical vibration suppression.
- SIL3/Cat.3/PLGrade safety function (safety torque off).
- The product design conforms to UL standard and some products have passed UL certification.
- The series of products have passed CE certification, and conform with ROHS environmental certification standards.
Thông số kỹ thuật
| Series |
Model |
Power
（W) |
Power supply voltage |
Max continuous
output current
(rms)(A) |
Peak current
(A) |
Control mode |
| JD series |
JD430-AA-000 |
200~2000 |
AC220V |
10 |
27.5 |
CANopen |
| JD620-AA-000 |
1005~3000 |
AC380V |
7 |
25 |
CANopen |
| JD630-AA-000 |
3000~3800 |
10 |
35 |
CANopen |
| JD630-LA-000 |
3000~3800 |
10 |
35 |
RS485 |
| JD640-AA-000 |
4400/5500 |
13 |
45 |
CANopen |
| JD640-LA-000 |
4400/5500 |
13 |
45 |
RS485 |
| JD640-AR-000 |
5500 |
13 |
45 |
CANopen |
| JD650-AA-000 |
7500 |
18 |
65 |
CANopen |
| JD650-AR-000 |
7500 |
18 |
65 |
CANopen |
Thông tin đặt hàng
Tài liệu
KincoCatalog_JD&FD2S&CD2S_Servo_K1E05
