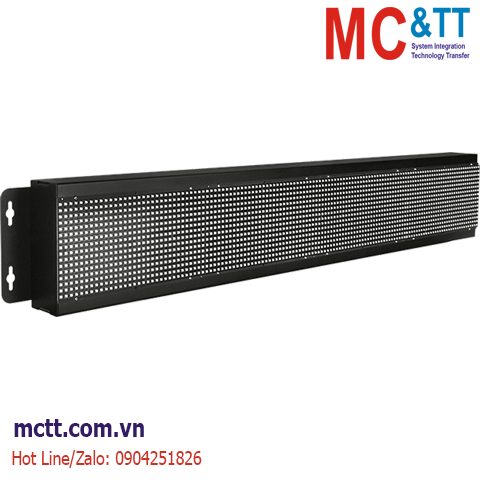

Màn hình LED công nghiệp 8/16 ký tự một hàng RS-485/Ethernet Modbus RTU/TCP ICP DAS iKAN-116S CR

Chia sẻ:
Mã sản phẩm: iKAN-116S
Thương hiệu: ICP DAS
Tình trạng:

Small-sized, Single-row, 8/16-Character Industrial LED Display with Modbus/TCP protocol

Liên hệ
Mô tả

Màn hình LED công nghiệp 8/16 ký tự một hàng RS-485/Ethernet Modbus RTU/TCP ICP DAS iKAN-116S CR

Features

  • Supports Modbus TCP Slave and Modbus RTU Slave protocols
  • Can be remotely controlled using a smart phone or other mobile device
  • 7 colors, including red, blue, yellow, green, light blue, purple and white
  • Able to store up to 128 common messages
  • Web-based User Interface
  • Able to integrate both text and variables in a single message
  • Built-in RTC (Real Time Clock )
  • Supports multiple languages with a text height of 16 cm

Introduction

The iKAN series is a family of industrial LED display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. It is highly suitable for presenting formatted messages in indoor areas using either Unicode characters, which can be used to display multiple languages, or ASCII characters.

The iKAN-116(S) provides a single line of eight Unicode characters or 16 ASCII characters, while the iKAN-124(S) provides 12 Unicode characters or 24 ASCII characters. Support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments.

The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate different degrees of importance of the message, as well as significantly increase the readability of the message in an industrial arena. Messages can be edited and enabled/disabled using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone.

Application

https://mctt.vn/ikan-led-icp-das

PLC HMI

The iKAN can be employed as a large HMI with a memory storage of up to 128 messages (user-defined priority), each of which can be used to display information generated by a PLC. A range of seven colors is available for the text, including red, blue, yellow, green, light blue, purple and white, which can be used to indicate warnings or alarms, as well as increasing the readability of a message.



Indoor Air Quality Display

The iKAN can be used to read indoor air quality monitoring data from an external DL-302 module, including the carbon dioxide level, temperature and humidity, and then display the information in real-time, making it suitable for commercial and public buildings, such as schools and museums, as well as for retail, leisure and healthcare facilities where personnel are required to stand for long periods of time, and where the indoor air quality is required to be monitored and displayed at the entrance or lobby of the building.

Specifications

Display
Size Line: 1
ASCII Characters: 16
Unicode Characters: 8
Real Time Clock Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Character Sets 16 x 16 Unicode or 8 x 16 ASCII
Color Red, Blue, Yellow, Green, Light Blue, Purple or White
Data Pool 40 Coil values, 64 Float values, and 64 Integer values
Message Pool 128 common messages with user-defi ned priority levels, Up to 20 Unicode characters or 50 ASCII characters
each
COM Ports
Ports 2 × RS-485
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format N81, E81, O81
Protocol Modbus RTU Master/Slave
Ethernet
Ports 2 × RJ-45, 10/100 Base-TX
Protocol Modbus TCP Master/Slave, Max. 8/8 connections
Configuration Web-based User Interface
Power
Input Range 100 ~ 240 VAC
Consumption 0.3 A @ AC 120 V
Mechanical
Casing Aluminum
Dimensions (mm) 834 x 115 x 37.5 (W x L x D)
Installation Wall mounting
Weight 2 Kg
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -10 ~ +75°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iKAN-116S     CR  Small-sized, Single-row, 8/16-Character Industrial LED Display with Modbus/TCP protocol (RoHS)
