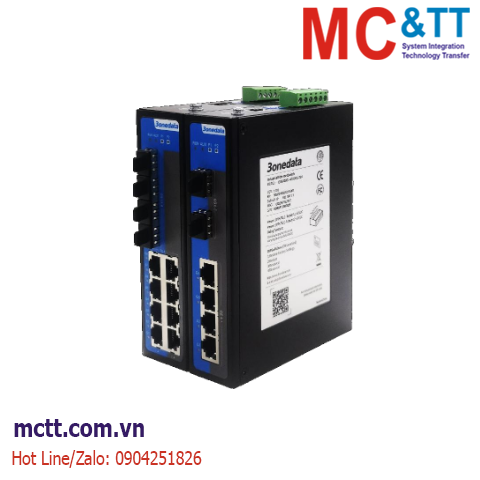

Switch công nghiệp quản lý 8 cổng Gigabit Ethernet + 4 cổng Giga SFP 3Onedata IES6300SL-8GT4GS-2LV
IES6300SL series products are 6/12/20-port Gigabit layer 2 managed industrial-grade Ethernet switches with optional PoE. PoE power supply conforms to IEEE802.3af/at protocol standard. This series provides 6 products and supports Gigabit SFPslots, Gigabit copper ports, and Gigabit PoE copper ports. They adopt DIN-Railor wall mounting to meet the requirements of different application scenes.
Network management system supports a variety of networkprotocols and industry standards, such as IPv4, VLAN, STP/RSTP/MSTP, ERPS, PoE,DHCP, LLDP, IGMP Snooping, QoS, Modbus TCP monitoring, port trunking, portmirroring, etc. It has perfect management functions, supporting portconfiguration, port statistics, ACL, 802.1X authentication, network diagnosis,rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SNMP, SSH, andother access methods can be supported. Network management system could bring you great user experiencethrough its friendly interface design and easy and convenient operation.
The input powersupply is two independent power supply circuits which can ensure the normaloperation of the device when one power supply fails. The design of DIP switchcould implement device factory setting recovery and restart. When power supplyor port has link failure, ALM indicator will be bright and send out alarm,meanwhile, alarm device connected to the relay will send out alarm for rapidscene troubleshooting. Hardware adopts fanless, low power consumption, widetemperature and voltage design and has passed rigorous industrial standardtests, which can suit for the industrial scene environment with harshrequirements for EMC. It can be widely used in smart city, safety city,intelligent manufacturing and other industrial fields.
Tính năng
- Support 2 Gigabit SFP slots and 4 Gigabit copper ports (optional PoE), 4 Gigabit SFP slots and 8 Gigabit copper ports (optional PoE) or 4 Gigabit SFP slots and 16 Gigabit copper ports (optional PoE)
- Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
- Support multiple network protocols and industry standards, such as STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL and SNMP.
- In PoE products, the maximum power consumption of 6 ports is 120W, and that of 12/16 ports is 240W
- Support dual power redundancy. The input voltage of non-PoE products: 12~60VDC, and that of PoE products: 44~57VDC
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.1Q for VLAN |
|
Interface |
Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
DIP switch: 1- forced 100M (5GT, 8GT)/ loop detection (16GT), 2- storm suppression, 3-VLAN, 4-flow control |
|
LED Indicator |
Power indicator, running indicator, interface indicator |
|
Switch property |
IES2300SL-5GT-2LV
- Transmission mode: store and forward
- MAC address: 2K
- Buffer: 2Mbit
- Backplane bandwidth: 14G
- Switch time delay: <10μs
IES2300SL-8GT-2LV, IES2301SL-8GT-2LV
- Transmission mode: store and forward
- MAC address: 4K
- Buffer: 1.5Mbit
- Backplane bandwidth: 16G
- Switch time delay: <10μs
IES2300SL-16GT-2LV
- Transmission mode: store and forward
- MAC address: 8K
- Buffer: 4.1Mbit
- Backplane bandwidth: 52G
- Switch time delay: <10μs
|
|
Power Supply |
12/24/48 VDC (9~60VDC), dual power supply redundancy, using 4-pin 5.08mm pitch terminal blocks, support anti-reverse connection |
|
Power Consumption |
IES2300SL-5GT-2LV
- No-load: 0.2W@12VDC
- Full-load: 1.6W@12VDC
IES2300SL-8GT-2LV, IES2301SL-8GT-2LV
- No-load: 0.4W@12VDC
- Full-load: 3.0W@12VDC
IES2300SL-16GT-2LV
- No-load: 3.3W@48VDC
- Full-load: 10.4W@48VDC
|
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Mechanical Structure |
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Weight: 0.567kg (IES2301SL-8GT-2LV), 0.644kg (IES2300SL-16GT-2LV),
Dimension (W x H x D):
- IES2300SL-5GT-2LV：28mm×103mm×78mm
- IES2300SL-8GT-2LV：40.6mm×103mm×78mm
- IES2301SL-8GT-2LV, IES2300SL-16GT-2LV: 40.6mm×150mm×120mm
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
|
Model |
Gigabit Copper Port |
Gigabit PoE Copper Port |
Gigabit SFP Slot |
PoE Power |
Power Supply |
|
IES6300SL-4GT2GS-2LV |
4 |
— |
2 |
— |
12~60VDC
Dual power supply redundancy |
|
IES6300SL-8GT4GS-2LV |
8 |
— |
4 |
— |
12~60VDC
Dual power supply redundancy |
|
IES6300SL-4GP2GS-2LV |
— |
4 |
2 |
120W |
44~57VDC
Dual power supply redundancy |
|
IES6300SL-8GP4GS-2LV |
— |
8 |
4 |
240W |
44~57VDC
Dual power supply redundancy |
|
IES6300SL-16GT4GS-2LV |
16 |
— |
4 |
— |
12~60VDC
Dual power supply redundancy |
|
IES6300SL-16GP4GS-2LV |
— |
16 |
4 |
240W |
44~57VDC
Dual power supply redundancy |
