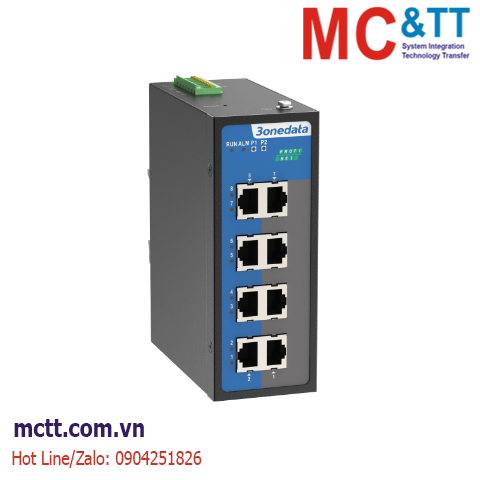

Switch công nghiệp quản lý hỗ trợ PROFINET 8 cổng Ethernet 3Onedata IES6100PN-8T-2LV
IES6100PN-8T-2LV is 8-port 100M layer 2 managed PROFINET industrial Ethernet switch, which supports PROFINET RT real-time communication and conforms to the consistency category CC-B. This series provides 100M copper ports. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
The network management system supports various network protocols and industry standards, such as PROFINET, STP/RSTP/MSTP, MRP, 802.1Q VLAN, QoS function, LLDP, RMON, port mirroring, etc. It has perfect management functions, support port configuration, port statistics, access control, network diagnosis, rapid configuration, online upgrade, etc.; It can support WEB, SSH, Telnet, SNMP and other access methods; Provide GSD equipment description file, and realize simple and consistent configuration and diagnosis through STEP 7 or TIA Portal configuration tool. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
RESET button can reboot the device and restore factory defaults. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply, port or other configurable event has failure or alarm, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in factory automation, process automation, smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing, military project and other industrial fields.
Tính năng
- Support 8 100M copper ports
- Support PROFINET RT real-time communication and meet the requirements of consistency category CC-B
- Support PROFINET MRP network redundancy, improve network reliability, reconfiguration time ≤200ms
- Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- Support dual power redundancy, input voltage 12~48VDC
- Support -40~75℃ wide operating temperature range
- Support IP40 protection grade
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEC 61158 and IEC 61784 for PROFINET
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEC 62439-2 for MRP
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP |
|
Industrial Ethernet |
PROFINET V2.4 |
|
Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, DHCP Client and Server, Port Mirroring, QoS, LLDP, File Management, Log Management, Syslog Server, Port Statistics |
|
Security |
Classification of User Permissions, Port Alarm, Temperature Alarm, Voltage Alarm, MRP Alarm, Neighbor Alarm, Network Load Alarm, Error Frame Alarm, Discarded Frame Alarm, E-mail Alarm, SNMP Trap Alarm, Relay Alarm, SSHD Configuration, Telnet Configuration, HTTP Configuration, HTTPS Configuration, Loop Detection |
|
Switch Function |
802.1Q VLAN, Port Static/Dynamic Aggregation, Bandwidth Management, Flow Control, Port Rate Limit, Port Isolation |
|
Unicast / Multicast |
Static Multicast, IGMP-Snooping |
|
Redundancy Technology |
Ring, MRP(Master/Client), STP/RSTP/MSTP |
|
Time Management |
NTP server and client |
|
Troubleshooting |
Ping, Traceroute, Cable Diagnosis |
|
Interface |
100M copper port: 10/100Base-T(X) Self-Adaption or Forced Mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
Relay interface: support 1 relay alarm information output, adopt 7-pin 5mm pitch terminal blocks (2-pin relay), current load capacity is 1A@30VDC or 0.3A@125VAC |
|
Indicator |
Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator |
|
Switch Property |
Transmission mode: store and forward
MAC address: 8K
Buffer: 2Mbit
Backplane bandwidth: 1.6G
Switch time delay: <10μs |
|
Power Supply |
12~48VDC dual power supply redundancy, 7-pin 5mm pitch terminal blocks, the power supply occupies 4 pins |
|
Power Consumption |
No-load: 2.2W@24VDC
Full-load: 5.0W@24VDC |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Physical Characteristic |
Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 53mm×138mm×110mm |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Signal: common mode ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
|
Warranty |
3 years |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
| Available Models |
100M Copper Port |
Power Supply |
| IES6100PN-8T-2LV |
8 |
12~48VDC, dual power supply redundancy |
