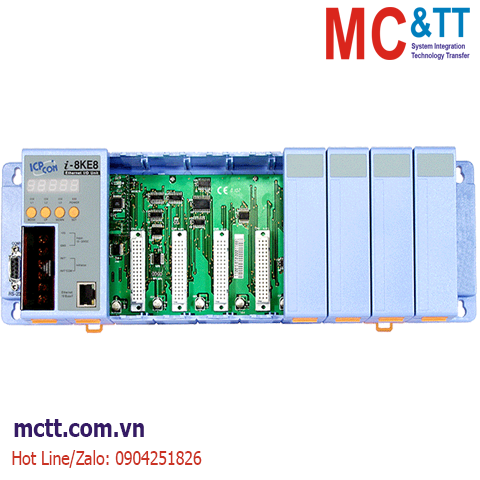

Module RS-485 & Ethernet DCON 8 khe cắm module I/O ICP DAS I-8KE8 CR
Dừng và thay thế bằng iP-8841
Features
• 80186 or compatible (16-bit and 80 MHz)
• MiniOS7 Embedded Operating System (DOS-like)
• Slave I/O unit with DCON protocol (ASCII-based protocol )
• Support I/O configuration with DCON Utility via Ethernet(VxComm Port)
• Simultaneous access by a maximum of 6 host PCs
• Built-in Watchdog
• 7-Segment display x 5
• Input Protection circuitry
• 8 Slots for I-8K and I-87K Modules
• Operating Temperature: -25 ~ +75 °C
Introduction
The I-8KE4/I-8KE8 is an embedded Ethernet I/O units using DCON Protocol Firmware.ICPDAS provides various I/O modules, such as analog input/output, digital input/output and counter/frequcncy modules, which can be used in remote data acquisition and control applications for environment monitoring, power management and factory automation, etc via Ethernet Port or RS-232 Port.
The CPU is a 16-bit 80186-80 (80 MHz). Apart from the original functions (input, output, power on value, safe value, high limit value, low limit value) of the I/O module, the firmware provides additional functions to allow I/O modules in different slots to be combined together. For example, if the channel value of an AI module is above a predefined high limit value, or below a predefined low limit value, the information can be immediately passed to another DO module to trigger alarm or light.
Various software development kits (SDK) and demos are provided, such as DLL, Labview driver, Indusoft driver, Linux driver, OPC server, etc. Although all the SDK drivers support only COM Port interface,users can also use there SDK by installing the VxComm Utility . VxComm Utility can create Virtual COM Port to map the Ethernet Port, then the I/O modules can be easily added to the I-8KE4/I-8KE8 and can be quickly integrated into an existing system.
Applications
Specifications
| CPU Module |
| CPU |
80186 or compatible, 16-bit and 80 MHz |
| EEPROM |
2 KB |
| Flash |
512 KB |
| SRAM |
512 KB |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
3 x Programmable |
| I/O Expansion |
| I/O Type |
I-87K series |
| Slots |
8 |
| COM Ports |
| Ports |
1 x RS-232 |
| Ethernet |
| Ports |
1 x RJ-45, 10Base NE2000 compatible |
| Power |
| Input Range |
+10 ~ 30 VDC (3 kV Isolated ) |
| Consumption |
5.1 W |
| Mechanical |
| Dimensions (mm) |
354 x 110 x 75.5 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8KE8 CR |
8-slot Ethernet I/O Expansion Unit with 80186-80 CPU, 1 Serial Port and 1 Ethernet Port (DCON Protocol) (Blue Cover) (RoHS) |
