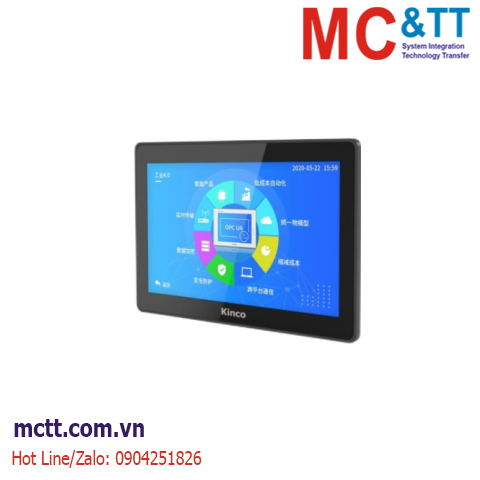

Màn hình cảm ứng HMI 10.1 inch chống nước Kinco G100E2-WIFi-PR01 (3 COM, 1 USB Host, 2 Ethernet)
Tính năng
- The operating temperature of the whole machine is -20 ~ 70℃
- Standard dual network ports +WiFi for remote debugging
- The main board is sprayed with three anti-paint to resist condensation
- Full metal shell, strong anti-interference ability
- Full fit process, look and feel similar to capacitive screen
Thông số kỹ thuật
|
Performance specification |
|
Display size |
10.1″TFT |
| Display area |
222.72*125.28mm |
|
Resolution |
1024*600 pixel |
|
Display color |
16.7M |
| Display angle of view |
85/85/85/85(left/right/up/down) |
| Contrast ratio |
800:1 |
|
Backlight |
LED |
|
Brightness |
250cd/m2 |
|
Backlight life |
More than 30000 hours |
| Touch panel |
4 line precision resistance network（surface hardness 3H） |
|
CPU |
ARM RISC 32Bit 800MHz |
|
Storage |
256MB NAND Flash Memory + 256MB DDR3 Memory |
|
RTC |
Built-in RTC |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host/serial port |
| Ethernet |
LAN0꞉10/100Mbps
LAN1꞉10/100Mbps |
|
Program download |
USB Slave (Micro USB)/U disk/Ethernet port |
|
COM port |
COM0꞉RS232/485/422; COM1꞉485/422/CAN; COM2꞉RS232; |
| Extended interface |
None |
|
Electrical specification |
|
Input power supply |
DC18V～DC28V, built-in isolated |
|
Rated power |
15W @24VDC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
| PCB coating (Yes/No) |
Yes |
|
Shell material |
Metallic |
|
Dimensions(mm) |
166 ×254 ×32.6 mm |
|
Cutout size(mm) |
192 ×138 mm |
|
Weight |
1.65 Kg |
|
Environment specification |
|
Operating temperature |
-20～70℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-30～80℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
IP65 certification(4208-93) |
|
CE certification |
EN61000-6-4:2019, EN61000-6-2:2019 |
|
Software |
|
Configuration software |
Kinco DTools V4.1 and above version |
