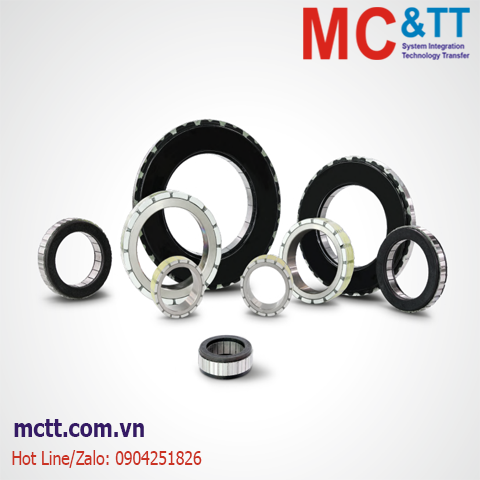

Động cơ Momen xoắn Frameless 635W, 3790 rpm, 1.6Nm Kinco FMC07628-0063-3728N-8DK00
Frameless torque motors, unlike traditional servo motors, consist only of stator and rotor components. Compared to framed motors, frameless motors offer flexible configuration and easy installation. Considering the increasing trend of highly integrated drive systems, frameless motors better meet the expectations of engineers. Engineers no longer need to consider motor interfaces in system design, allowing for maximum reduction of space occupied by the power output unit in the drive system, leading to higher system integration.
Tính năng
- Slimmer body thanks to new lightweight design, providing faster and smoother motion as well as smaller size and lower temperature rise under same torque performance.
- Higher torque density achieved through optimization of electromagnetic solutions, with smaller cogging torque thanks to increased pole pairs.
- Easy replacement of mainstream foreign products thanks to compatiable product dimensions, also wide compatibility to common harmonic reducers in the market.
- Various frame sizes, larger hollow inner diameter to meet diverse threading requirements, covering loads of -Kg.
- Customizable options: optional Hall sensors, temperature sensors, etc., with noticeable cost advantages.
- Digital factory for continuous and stable production, with multiple global / local distribution and offices providing support and services.
Thông số kỹ thuật
| Servo motor model |
FMC07628-0063-3728N-8DK00 |
| Rated power Pn(W) |
635 |
| Rated torque Tn(Nm) |
1.6 |
| Rated speed Nn (rpm) |
3790 |
| Rated current In(A) |
15.2 |
| MAX torqueTm(Nm) |
5.27 |
| MAX current Im (A) |
52 |
| Standstill torque Ts(Nm) |
1.76 |
| Standstill current Is(A) |
16.7 |
| Drive DC Link Voltage UDC(V) |
48 |
| Resistance line-line RL (Ω) |
0.083 |
| Inductance line-line LL (mH) |
0.237 |
| Electrical time constant τe (ms) |
2.85 |
| Mechanical time constant τm (ms) |
1.3 |
| voltage constant Ke (V/krpm) |
6.9 |
| Torque constant Kt (Nm/A) |
0.114 |
| Rotor moment of inertia Jm (Kg·cm2) |
1.2 |
| Number of pole pairs |
16 |
| Insulation class |
F |
| Weight G(Kg) |
0.98 |
| Position Feedback Device |
None |
| Temperature Sensor |
None |
| Cooling method |
Full coating, self-cooling |
| Temperature |
-20~40℃ (non-freezing) |
| Humidity |
Below 90% RH (no condensation) |
| Ambient environment |
Free from corrosive or flammable gases, oil mist, dust |
| Installation Altitude |
<1000m amsl: No derating; 1000m to 4000m asml: 1.5% derating per 100m |
Thông tin đặt hàng
Tài liệu
Kinco FMC frameless torque motor
