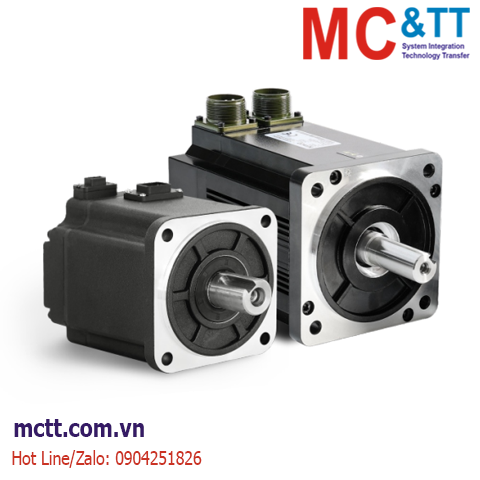

Động cơ AC Servo 2400W, 1500 rpm without brake Kinco SMK130G-0240-15YAK-5HSR
Tính năng
- New electromagnetic design
Adopting 12-slot and 10-pole design, with small slot torque and low torque pulsation, which is conducive to reducing the vibration during the operation of the motor and making the torque output more smooth
- New structure and short fuselage
The redesign of the fuselage structure shortens the length of the fuselage, which can save more installation space and reduce the size of the equipment for customers' equipment
The motor in the industry is at the highest insulation level, which can maintain high reliability and stability in high temperature extreme environment
- Energy efficiency class: 2
Thông số kỹ thuật
| Servo motor model |
SMK130G-0085-15□■K-5LSR |
SMK130G-0130-15□■K-5LSR |
SMK130G-0085-15□■K-5HSR |
SMK130G-0130-15□■K-5HSR |
SMK130G-0180-15□■K-5HSR |
SMK130G-0240-15□■K-5HSR |
| Adapted drivers |
FD435P-LA-000
FD435P-CA-000
FD435P-EA-000
FD435P-PA-000 |
FD445P-LA-000
FD445P-CA-000
FD445P-EA-000
FD445P-PA-000 |
FD615P-LA-000
FD615P-CA-000
FD615P-EA-000
FD615P-PA-000 |
FD625P-LA-000
FD625P-CA-000
FD625P-EA-000
FD625P-PA-000 |
| Rated voltage VAC |
220 |
220 |
380 |
380 |
380 |
380 |
| Rated power Pn(W) |
850 |
1300 |
850 |
1300 |
1800 |
2400 |
| Rated torque Tn(Nm) |
5.39 |
8.34 |
5.39 |
8.34 |
11.5 |
15.2 |
| Rated speed Nn (rpm) |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
| Rated current In(A) |
6.6 |
10.5 |
3.5 |
5 |
6.9 |
9.1 |
| MAX torqueTm(Nm) |
16.17 |
25.02 |
16.17 |
25.02 |
34.5 |
45.6 |
| MAX current Im (A) |
21.45 |
34.125 |
11.375 |
16 |
22.425 |
29.575 |
| Max speed (rpm) |
4500 |
| Standstill torque Ts(Nm) |
5.929 |
9.174 |
5.929 |
9.174 |
12.65 |
16.72 |
| Standstill current Is(A) |
7.26 |
11.55 |
3.85 |
5.5 |
7.59 |
10.01 |
| Torque constant Kt (Nm/A) |
0.93 |
0.89 |
1.85 |
1.85 |
1.85 |
1.85 |
| Rotary inertia Jm (Kg·cm3) |
11.56 |
17.17 |
11.56 |
17.17 |
22.85 |
30.37 |
| 12.86 (with brake) |
18.47 (with brake) |
12.86 (with brake) |
18.47 (with brake) |
24.15 (with brake) |
31.67 (with brake) |
| Brake parameter |
Brake holding torque T(Nm) |
20 |
20 |
20 |
20 |
20 |
20 |
| Rated power (W) |
23 |
23 |
23 |
23 |
23 |
23 |
| Rated voltage (VDC) |
24 |
24 |
24 |
24 |
24 |
24 |
| Insulation class |
F |
F |
F |
F |
F |
F |
| Max radial force Fr(N) |
686 |
686 |
686 |
686 |
686 |
686 |
| Max axial force Fa(N) |
196 |
196 |
196 |
196 |
196 |
196 |
| Weight G(Kg) |
6.03 |
7.35 |
6.03 |
7.35 |
8.7 |
10.6 |
| 7.38 (with brake) |
8.6 (with brake) |
7.38 (with brake) |
8.6 (with brake) |
9.95 (with brake) |
11.85 (with brake) |
| Cooling method |
Totally enclosed, self-cooling |
| Protection level |
IP65, IP54 at the shaft end (Note: add oil seal IP54 at the shaft end, no oil seal IP50) |
| Temperature |
-20~40℃ (no icing) |
| Humidity |
Below 90% RH (no condensation) |
| Ambient environment |
Keep away from corrosion, flammable gases, oil droplets, dust |
| Altitude |
The rated working altitude is less than 1000 meters above sea level. When the working altitude is higher than 1000 meters, it is necessary to reduce the rated value by 1.5% for every 100 meters of elevation.
The maximum working altitude is 2000 meters above sea level. |
| Note |
□ = M ： Singleturn communication type magnetoelectric encoder
Q ： Multiturn communication type magnetoelectric absolute encoder
V ： Singleturn communication type optical encoder
Y ： Multiturn communication type optical absolute value encoder
■ = A ： Motor without holding brake
B ：Motor with holding brake |
