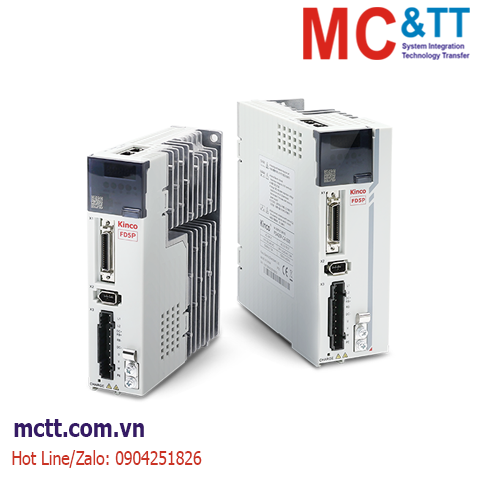

Bộ điều khiển AC Servo Driver 1500W, Pulse, EtherCAT Kinco FD445P-EA-000
Tính năng
- Support pulse control;
- Supports MODBUS, CANopen, EtherCAT, Profinet communication control;
- Adaptable to high-precision encoder applications;
- Support EASY Tune optimization and online self-tuning.
- Trap filter for vibration suppression;
- S-curve control;
- Real-time synchronized control, which can effectively improve production efficiency and increase the precision of multi-axis synchronized control;
- IO contains 7-channel digital input, 5-channel digital output and encoder output;
- With driver over-voltage & under-voltage protection, over-current protection, overheating protection and short circuit protection, etc.
Thông số kỹ thuật
| Model |
Power
(W) |
Supply Voltage |
Maximum continuous output current (rms) |
Peak Current
(PEAK) |
Weight
（Kg） |
External Dimension
L*W*H (mm） |
| FD415P-□A-000 |
50~400 |
AC220V |
3.2 |
15 |
0.881 |
170*153*40 |
| FD425P-□A-000 |
750 |
4 |
18 |
1.5 |
170*153*55 |
| FD425P-□F-000 |
750~1000 |
5 |
18 |
| FD435P-□A-000 |
850~1000 |
7.6 |
32.5 |
1.4 |
176*173.7*55 |
| FD445P-□A-000 |
1500 |
12.5 |
54 |
2.1 |
186*170.3*80.3 |
| FD615P-□A-000 |
1500 |
AC380V |
5.4 |
23 |
1.4 |
176*173.7*55 |
| FD625P-□A-000 |
3000 |
12 |
45.5 |
2.1 |
186*170.3*80.3 |
Note:□= L：RS232，RS485,pulse
C：RS232，CAN,pulse
E：RS232，EtherCAT，pulse
P: RS232,Profinet，pulse (FD415P and FD425P are currently not supported） |
Thông tin đặt hàng
Tài liệu
FD5P Series AC Servo Drive Selection
FD5P series AC servo drive user manual
