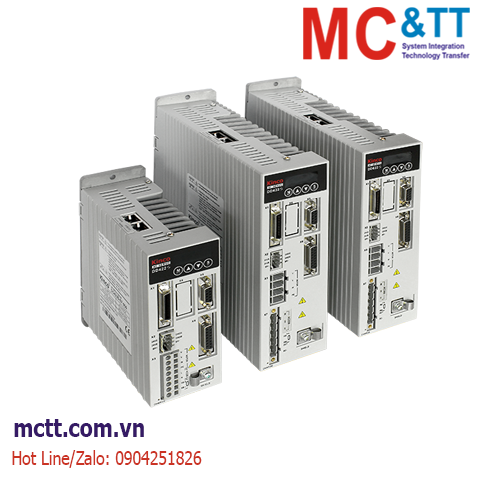

Bộ điều khiển AC Servo Driver AC220V, 27.5A, Pulse Kinco DD432S-AA-000
Tính năng
1. Simple to use.
• Special upper computer debugging software.
• Deeply understand the usage habits of linear motor users, and based on this, upgrade the upper computer software, so that our debugging software is intuitive and easy to use.
2. Powerful performance.
• Highly rigid and responsive.
• Using direct drive, the electrical energy is directly converted into linear motion, which can provide several times the thrust of the screw system.
• Highprecision with high speed.
• Support up to 4MHz pulse input, control more fine, higher speed, higher precision.
• Small running friction, low noise.
Thông số kỹ thuật
| Series |
Model |
Power supply voltage |
Max continuous
output current
(rms)(A) |
Peak current
(A) |
Control mode |
| DD2S series |
DD412S-AA-000 |
AC220V |
3 |
10 |
pulse |
| DD422S-AA-000 |
4 |
15 |
pulse |
| DD422S-EA-000 |
4 |
15 |
EtherCAT |
| DD432S-AA-000 |
11 |
27.5 |
pulse |
Thông tin đặt hàng
Tài liệu
KincoCatalog_JD&FD2S&CD2S_Servo
