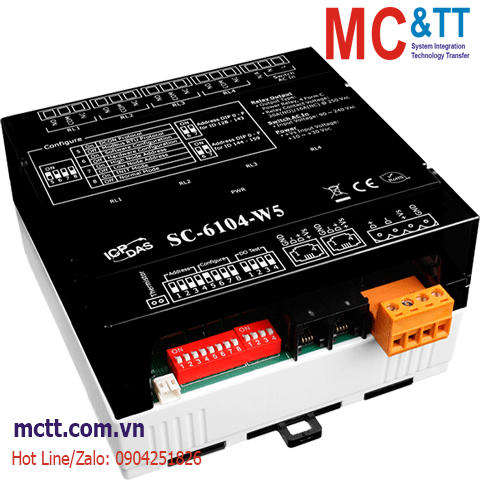

Moule RS-485 Modbus RTU điều khiển FCU 1 kênh AC DI + 4 kênh đầu ra Relay ICP DAS SC-6104-W5 CR

Chia sẻ:
Mã sản phẩm: SC-6104-W5
Thương hiệu: ICP DAS
Tình trạng:

1-channel AC Digital Input and 4-channel Relay Output Lighting Control Module

Liên hệ
Mô tả

Moule RS-485 Modbus RTU điều khiển FCU 1 kênh AC DI + 4 kênh đầu ra Relay ICP DAS SC-6104-W5 CR

Feature

  • Cost-effective for lighting control
  • Power Relay Outputs
  • Isolated AC Digital Input
  • Support DCON and Modbus RTU Protocol
  • 7 Kinds DI DO coordinated functions

Introduction

The SC-6104-W5 is an easy-to-use fan control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.

The SC-6104-W5 provides 1 channel for digital input (photo couple isolation) and 4 channels for relay output. All of the 4 output channels are form C type relay, while the input channel is based on a sink-type using a wire connection. The input channel can directly control a 4-channel relay ON and OFF sequence without requiring a remote host controller. And the SC-6104-W5 support 7 kinds coordinated function for users select. In addition to there is one channel temperature sensor can detect -40℃ ~ +80℃ and it can be read by DCON and Modbus RTU communication protocol to control fan control unit. SC-6104-W5 has ±4 kV ESD protection for each terminal and 5000 Vrms intra-module isolation for DI. And the Shell is using fireproof materials. These high protection designed allows users more at ease.

When required, communication with the SC-6104-W5 is programmable based on the DCON and Modbus RTU protocol, and an added benefit is that different addresses can be set for DCON and Modbus RTU communication via hardware configuration.

Warning

Do not use the SC-6104-W5 to connect to any device where the loading is greater than 550 W (5 A, 110 V) per channel, as this may cause the module to malfunction.
ICP DAS cannot be held responsible for any damage or injuries that may result from inappropriate usage and any such usage may cause your warranty to be voided.

Application

Specifications

Software
Function Local and remote direct control relay ON/OFF and remote status monitoring.
EMS Protection
EFT (IEC 61000-4-4) ±1 kV for power and communication
ESD (IEC 61000-4-2) ±4 kV contact for each terminal
LED Indicators
Status Power: 1 LED as Power Indicator
Digital Output: 4 LED as digital output indicator
Temperature Measurement
Channels 1
Range -40°C ~ +80°C, Thermistor
Accuracy ±0.3°C at 25°C, Max. ±2°C
Digital Input
Channels 1
Type Wet Contact, 90 ~ 240 VAC
ON Voltage Level 85 VAC
OFF Voltage Level 60 VAC
Isolation 5000 Vrms
Input Impedance 68 KΩ, 1 W
Relay Output
Channels 4
Type Power Relay, 4 Form C
Contact Rating 20 A (NO)/16 A (NC) @ 250 VAC (Recommend Working Current 5 A)
Operate Time 20 ms Max.
Release Time 10 ms Max.
Electrical Endurance 100,000 ops
Mechanical Endurance 10,000,000 ops
Power on Value Yes
COM Ports
Ports 1 x RS-485
Baud Rate Hardware Configuration: Fixed 9600 bps
Software Configuration: 1200 ~ 115200 bps
Data Format (N,8,1), (O,8,1), (E,8,1), (N,8,2)
Protocol Modbus RTU or DCON
Power
Input Range +10 ~ +30 VDC
Consumption 100 mA @ 24 VDC (2.4 W Max.)
Mechanical
Dimensions (mm) 116 x 122 x 64 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25°C ~ +75°C
Storage Temperature -30°C ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

SC-6104-W5     CR  1-channel AC Digital Input and 4-channel Relay Output Lighting Control Module (ROHS)
