Bộ lập trình nhúng Win-GRAF PAC CPU Cortex-A9 +Linux Kernel ICP DAS RPAC-2658M CR

Chia sẻ:
Mã sản phẩm: RPAC-2658M
Thương hiệu: ICP DAS
Tình trạng:

Win-GRAF PAC with Quad-core Cortex-A9 CPU, Linux Kernel

Liên hệ
Mô tả

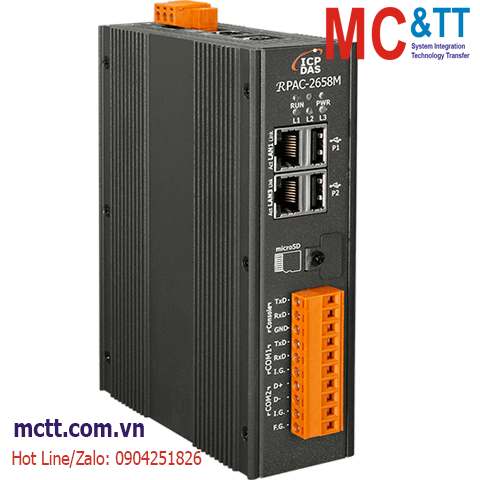

Bộ lập trình nhúng Win-GRAF PAC CPU Cortex-A9 +Linux Kernel ICP DAS RPAC-2658M CR

Features

  • Cortex-A9 CPU, 1.0 GHz, quad-core
  • 1 GB DDR3 RAM and 8 GB eMMC Flash
  • Linux Kernel 4.1.15
  • Embedded Win-GRAF SoftLogic (IEC 61131-3)
  • Support Dual PAC Redundant System
  • Real-Time Capability (Built-in Xenomai Real-Time Core Architecture)
  • 64-bit Hardware Serial Number for Software Protection
  • 10/100/1000M Three Ethernet Ports
  • 4 Serial Ports (RS-232/485/422)

Introduction

The RPAC-2658M is the new generation Linux based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS. This PAC is equipped with a Quad-core Cortex-A9 CPU (1 GHz) and running a Linux operating system. Using the built-in microSD, the RPAC-2658M can save application programs, files, and data.

The benefits of running Linux on a Win-GRAF PAC device includes real-time capability, achievable deterministic control, and allowing PAC can have a PC-like operating environment. The PAC is capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications and also supporting C, C++ to develop data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.

Application

Redundancy

Modbus TCP I/O

Modbus RTU I/O

DCON IO

Specifications

Software
OS Linux Kernel 4.1.15
Protocol • NET ID
• Redundancy Solution
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type
‣ DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Application Protection
• Data Binding
• On Line Change
• Schedule Control
• Retain Variables
• File Access and Data Log
Development Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service SSH Server, Web Server
Main Unit
CPU Cortex-A9 CPU, 1.0 GHz, quad-core
64-bit Hardware Serial Number Yes, for software copy protection
System Memory 1 GB DDR3 SDRAM
Storage 8 GB eMMC, 4 GB microSD card (up to 32 GB)
Non-Volatile Memory 64 KB FRAM, 128 KB MRAM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Yes
LED Indicators
Status 1 x System, 1 x Power, 2 x Programmable, 1 x Redundancy
COM Ports
Ports 2 x RS-232, 1 x RS-485 (2500 VDC Isolated), 1 x RS-422 (2500 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch 1 x 10 Position (0 ~ 9)
Ethernet
Ports 3 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 2 x USB 2.0
Power
Input Range +12 ~ 48 VDC
Consumption 7.2 W (0.3 A @ 24 VDC)
Mechanical
Casing Metal
Dimensions (mm) 42 x 164 x 129 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -40 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

RPAC-2658M     CR  Win-GRAF based PAC with Quad-core Cortex-A9 CPU, Linux OS and three LAN port (RoHS)
