PLC S7-300 | Tổng quan SIMATIC S7-300 Siemens – Phần 2
S7-300 Technology CPUs
Đây là dòng CPU chuyên biệt của Siemens được thiết kế để phù hợp cho các ứng dụng điều khiển vị trí (Motion) theo nhiều trục. Với chức năng PLCopen sẽ giúp cho việc lập trình dễ dàng hơn. Ngoài ra với CPU317TF-2DP còn có chức năng an toàn.
| CPU 315T-3 PN/DP | 6ES7315-7TJ10-0AB0Work memory 384 KB, supply voltage 24 V DC, MPI, PROFIBUS DP master/slave interface, PROFIBUS DP(DRIVE) interface, Ethernet/PROFINET interface with 2-port switch;with technology/motion control functions; MMC required |
| CPU 317T-3 PN/DP | 6ES7317-7TK10-0AB0Work memory 1024 KB, supply voltage 24 V DC, MPI, PROFIBUS DP master/slave interface, PROFIBUS DP (DRIVE) interface, Ethernet/PROFINET interface with 2-port switch with technology/motion control functions; MMC required |
| CPU 317TF-3 PN/DP | 6ES7317-7UL10-0AB0Work memory 1.5 MB, supply voltage 24 V DC, MPI, PROFIBUS DP master/slave interface, PROFIBUS DP(DRIVE) interface, Ethernet/PROFINET interface with 2-port switch;with technology/motion control functions; MMC required |
1. SIMATIC S7-300 CPU 315T-3 PN/DP
Dòng CPU này có đến 32 đối tượng chức năng với vùng nhớ làm việc ở mức trung bình. CPU tích hợp chức năng điều khiển vị trí với đầy đủ tính năng tiêu chuẩn của bộ CPU 315-2 PN/DP. Ứng dụng lý tưởng cho di chuyển đồng bộ như các khớp nối, hộp số, đĩa cam, điều khiển vị trí và áp suất cho hệ thống thủy lực….
- Bộ nhớ làm việc: 384KB
- Tốc độ xử lý: 0.05us
- Timer/counter: 256/256
- Vùng nhớ: 2048 byte
- Truyền thông: MPI, Profibus DP, Profinet
2. SIMATIC S7-300 CPU 317T-3 PN/DP
Với 64 khối chức năng với bộ nhớ làm việc lớn. CPU 317T-3 PN/DP sử dụng cho các ứng dụng với nhiều phân đoạn. CPU tích hợp chức năng điều khiển vị trí với đầy đủ tính năng tiêu chuẩn của bộ CPU 317-2 PN/DP. Ứng dụng lý tưởng cho di chuyển đồng bộ như các khớp nối, hộp số, đĩa cam, điều khiển vị trí và áp suất cho hệ thống thủy lực….
- Bộ nhớ làm việc: 1MB
- Tốc độ xử lý: 0.025us
- Timer/counter: 512/512
- Vùng nhớ: 4096 byte
- Truyền thông: MPI, Profibus DP, Profinet
3. SIMATIC S7-300 CPU 317TF-3 PN/DP
CPU 317TF-3 PN/DP là dòng CPU có khả năng điều khiển vị trí, các chức năng của một dòng CPU tiêu chuẩn và chức năng an toàn cơ bản chỉ trên một thiết bị duy nhât. Dựa trên việc tích hợp chức năng an toàn bộ điều khiển đáp ứng tất cả các tiêu chuẩn liên quan đến các ứng dụng đòi hỏi các chức năng liên qua đến an toàn như: EN 954-1 up to Cat. 4, IEC 62061 up to SIL 3 and EN ISO 13849 up to PLe. CPU với đầy đủ tính năng tiêu chuẩn của bộ CPU 317-2 PN/DP và CPU 317F-2 PN/DP (ngoại trừ CBA)
- Bộ nhớ làm việc: 1.5MB
- Tốc độ xử lý: 0.025us
- Timer/counter: 512/512
- Vùng nhớ: 4096 byte
- Truyền thông: MPI, Profibus DP, Profinet
Module mở rộng cho S7-300
Các module mở rộng của PLC S7-300 phân thành làm 5 loại chính:
- Power Supply (PS): module nguồn
- Signal Module (SM): module tín hiệu vào/ra số, tương tự
- Interface Module (IM): module ghép nối, ghép nối các thành phần mở rộng lại với nhau
- Function Module (FM): module chức năng riêng (Ví dụ module điều khiển động cơ bước, module điều khiển PID)
- Communication Module (CM): Module truyền thông

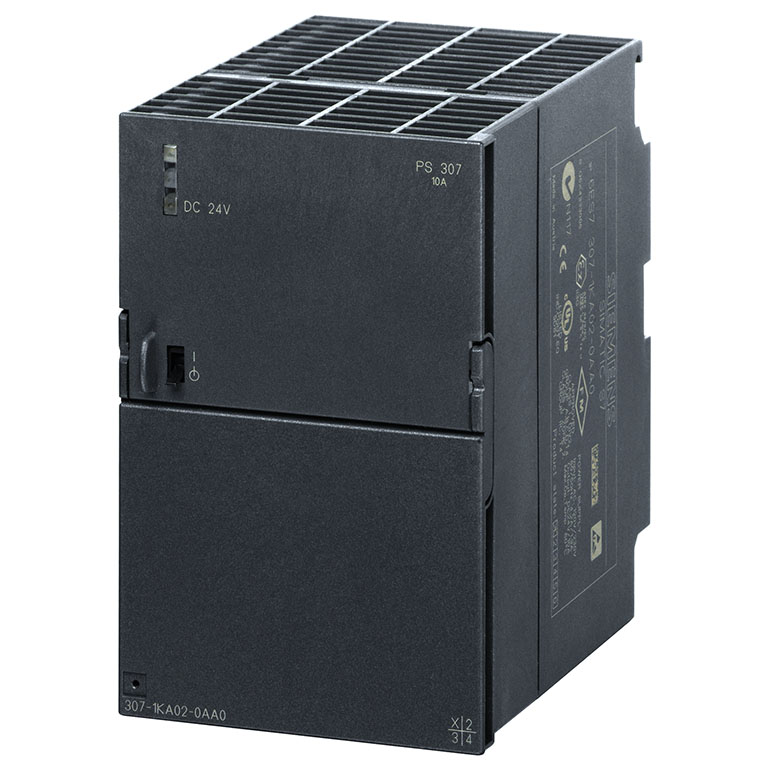

Module nguồn (PS – Power Supply) S7-300
Module nguồn tiêu chuẩn
| SIMATIC S7-300 with Regulated power supply PS305 input: 24-110 V DC output: 24 V DC/2 A | 6ES7305-1BA80-0AA0 |
| SIMATIC S7-300 Regulated power supply PS307 input: 120/230 V AC, output: 24 V DC/2 A | 6ES7307-1BA01-0AA0 |
| SIMATIC S7-300 Regulated power supply PS307 input: 120/230 V AC, output: 24 V/5 A DC | 6ES7307-1EA01-0AA0 |
| SIMATIC S7-300 Outdoor Regulated power supply PS307 input: 120/230 V AC, output: 24 V/5 A DC | 6ES7307-1EA80-0AA0 |
| SIMATIC S7-300 Regulated power supply PS307 input: 120/230 V AC, output: 24 V / 10 A DC | 6ES7307-1KA02-0AA0 |
SIPLUS Module nguồn
| SIPLUS S7-300 PS 305 -25…+70°C with conformal coating based on 6ES7305-1BA80-0AA0 . Stabilized power supplies Input: 24-110 V DC Output: 24 V DC/2 A | 6AG1305-1BA80-2AA0 |
| SIPLUS S7-300 PS 307 -25 … +70°C with conformal coating based on 6ES7307-1EA01-0AA0 . STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/5 A. | 6AG1307-1EA01-7AA0 |
| SIPLUS S7-300 PS 307 10 A -25…+70°C with conformal coating based on 6ES7307-1KA02-0AA0 . Stabilized power supply PS 307 Input: 120/230 V AC Output: 24 V DC/10 A | 6AG1307-1KA02-7AA0 |
Module DI/DO cho S7-300
Module DI/DO tiêu chuẩn
| Module DI | |

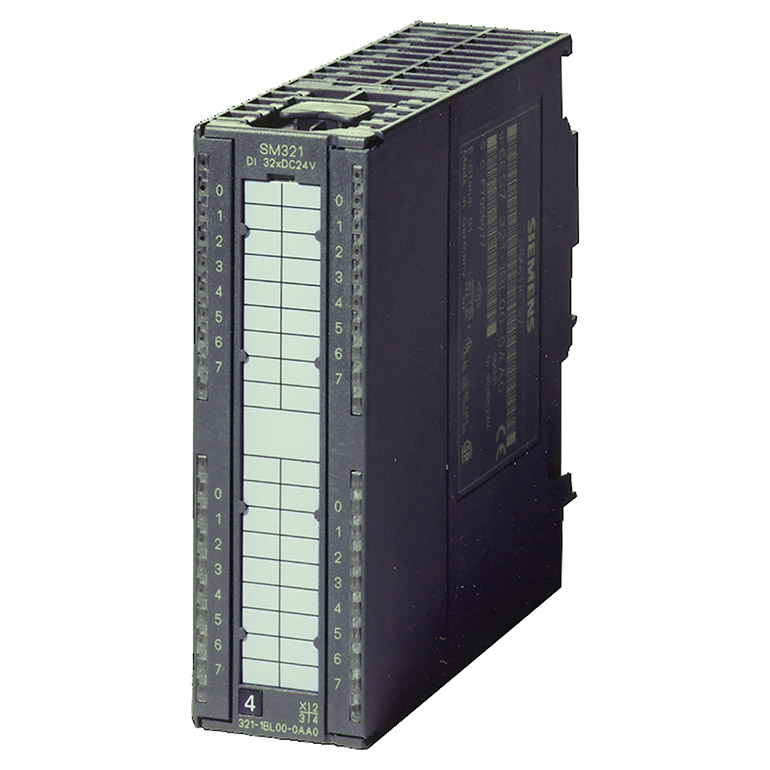

| SIMATIC S7-300, Digital input SM 321, isolated, 16 DI, 24 V DC, 1x 20-pole | 6ES7321-1BH02-0AA0 |
| SIMATIC S7-300, Digital input SM 321, isolated, 16 DI, 24 V DC, 1x 20-pole, 0.05 ms input delay | 6ES7321-1BH10-0AA0 |
| SIMATIC S7-300, Digital input SM 321, Isolated 16 DI, 24 V DC, Source input, 1x 20-pole | 6ES7321-1BH50-0AA0 |
| SIMATIC S7-300, Digital input SM 321, Isolated 32 DI, 24 V DC, 1x 40-pole | 6ES7321-1BL00-0AA0 |
| SIMATIC S7-300 digital input SM 321, Isolated in groups of 16, 64 DI, 24 V DC, 3ms, Sink/source input Terminal blocks 6ES7392-1.N00-0AA0 and cable 6ES7392-4…0-0AA0 required | 6ES7321-1BP00-0AA0 |
| SIMATIC S7-300, Digital input SM 321, isolated, 16 DI, 24-48 V AC/DC with single rooting, 1x 40-pole | 6ES7321-1CH00-0AA0 |
| SIMATIC S7-300, Digital input SM 321, isolated, 16 DI, 48-125 V DC, 1x 20-pole | 6ES7321-1CH20-0AA0 |
| SIMATIC S7-300, Digital input SM 321, isolated, 32 DI, 120 V AC, 1x 40-pole | 6ES7321-1EL00-0AA0 |
| SIMATIC S7-300, Digital input SM 321, isolated, 8 DI, 120 V/230 V AC, 1x 20-pole | 6ES7321-1FF01-0AA0 |
| SIMATIC S7-300, Digital input SM 321, isolated, 8 DI, 120 V/230 V AC, 1x 40-pole, with single rooting/channel | 6ES7321-1FF10-0AA0 |
| SIMATIC S7-300, Digital input SM 321, Isolated 16 DI, 120/230 V AC, 1x 20-pole | 6ES7321-1FH00-0AA0 |
| SIMATIC S7-300, Digital input SM 321, isolated, 16 DI; 24 V DC, 1x 20-pole, process interrupt, diagnostics, suitable for isochronous mode | 6ES7321-7BH01-0AB0 |
| Module DO | |
| SIMATIC S7-300, Digital output SM 322, isolated, 8 DO, 24 V DC, 2A, 1x 20-pole | 6ES7322-1BF01-0AA0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 16 DO, 24 V DC, 0.5A, 1x 20-pole, Total current 4 A/group (8 A/module) | 6ES7322-1BH01-0AA0 |
| SIMATIC S7-300, Digital output SM 322 High Speed, isolated, 16 DO, 24 V DC, 0.5A, 1x 20-pole | 6ES7322-1BH10-0AA0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 32 DO, 24 V DC, 0.5A, 1x 40-pole, Total current 4 A/group (16 A/module) | 6ES7322-1BL00-0AA0 |
| SIMATIC S7-300 digital output SM 322, Isolated in groups of 16, 64DO, 24 V DC, 0.3A sink output Total current 2 A/group, 8 A/module Terminal blocks 6ES7392-1.N00-0AA0 and cable 6ES7392-4…0-0AA0 required | 6ES7322-1BP00-0AA0 |
| SIMATIC S7-300 digital output SM 322, Isolated in groups of 16, 64DO, 24 V DC, 0.3A sinking output Total current 2 A/group, 8 A/module Terminal blocks 6ES7392-1.N00-0AA0 and cable 6ES7392-4…0-0AA0 required | 6ES7322-1BP50-0AA0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 8 DO, 48-125 V DC, 1.5A, 1x 20-pole | 6ES7322-1CF00-0AA0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 8 DO, 120/230 V AC, 1 A, 1x 20-pole | 6ES7322-1FF01-0AA0 |
| SIMATIC S7-300, Digital output SM 322, Isolated 16 DO, 120/230 V AC, 1 A, 1x 20-pole | 6ES7322-1FH00-0AA0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 32 DO, 120 V/230 V AC, 1 A, double-width, 2x 20-pole | 6ES7322-1FL00-0AA0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 8 DO (relay), 1x 20-pole, 24 V DC, 2 A or 230 V AC, 2A | 6ES7322-1HF01-0AA0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 5 A or 230 V AC, 5 A, connectors with spring-loaded terminal can be used as of 6ES7392-1BM01-0AA0 | 6ES7322-1HF10-0AA0 |
| SIMATIC S7-300, Digital output SM 322, Isolated 16 DO, relay contacts, 1x 20-pole | 6ES7322-1HH01-0AA0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 8 DO, 120/230 V AC, 2A, with single rooting/channel and selectable failure mode, 1x 40-pole | 6ES7322-5FF00-0AB0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 16 DO (solid-state relay), 24-48 V AC/DC; 0.5 A with single rooting, 1x 40-pole | 6ES7322-5GH00-0AB0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 120-230 V AC, 5 A with RC filter overvoltage protection | 6ES7322-5HF00-0AB0 |
| SIMATIC S7-300, Digital output SM 322, isolated, 8 DO, 24 V DC, 0.5A (1x 8 DO), Short-circuit protection diagnostics, 1x 20-pole | 6ES7322-8BF00-0AB0 |
| Module DI/DO | |
| SIMATIC S7-300, Digital module SM 323, isolated, 8DI and 8DO, 24 V DC, 0.5 A Total current 2A, 1x 20-pole | 6ES7323-1BH01-0AA0 |
| SIMATIC S7-300, Digital module SM 323, isolated, 16 DI and 16 DO, 24 V DC, 0.5 A, Total current 4A, 1x 40-pole | 6ES7323-1BL00-0AA0 |
| SIMATIC S7-300, Digital module SM 327, isolated, 8DI and 8DX, 24 V DC, 0.5 A 1x 20-pole; 8DX by individual channels Can be parameterized as DI or DO | 6ES7327-1BH00-0AB0 |
SIPLUS Module DI/DO
| Module DI | |
| SIPLUS S7-300 SM 321-20-pole -40…+70 °C With conformal coating based on 6ES7321-1BH02-0AA0 . Digital input Isolated 16 DI, 24 V DC, 1x 20-pole | 6AG1321-1BH02-2AA0 |
| SIPLUS S7-300 SM 321-40-pole -40…+70 °C With conformal coating based on 6ES7321-1BL00-0AA0 . Digital input Isolated 32 DI, 24 V DC, 1x 40-pole | 6AG1321-1BL00-2AA0 |
| SIPLUS S7-300 SM 321 -25…+70 °C With conformal coating based on 6ES7321-1CH20-0AA0 . Digital input Isolated 16 DI, 48-125 V DC, 1x 20-pole | 6AG1321-1CH20-2AA0 |
| SIPLUS S7-300 SM 321-20-pole -40…+70 °C With conformal coating based on 6ES7321-1FF01-0AA0 . Digital input Isolated 8 DI, 120 V/230 V AC | 6AG1321-1FF01-2AA0 |
| SIPLUS S7-300 SM321 8DI/120/230 -25…+70°C with conformal coating based on 6ES7321-1FF10-0AA0 . Digital input isolated, 8 DI, 120 V/230 V AC, 1x 40-pole, with single rooting/channel | 6AG1321-1FF10-7AA0 |
| SIPLUS S7-300 SM321 16DE/120/23 -40…+70°C with conformal coating based on 6ES7321-1FH00-0AA0 . Digital input isolated 16 DI, 120/230 V AC, 1x 20-pole | 6AG1321-1FH00-7AA0 |
| SIPLUS S7-300 SM 321-20-pole -25…+70 °C With conformal coating based on 6ES7321-7BH01-0AB0 . Digital input Isolated “16 DI; 24 V DC, 1x 20-pole” Process interrupt, diagnostics, suitable for isochr. mode | 6AG1321-7BH01-2AB0 |
| SIPLUS PCS 7 SM 321 16DI for medial exposure with conformal coating based on 6ES7321-7TH00-0AB0 . Digital input 16 DI; 24 V DC, 1x 40-pole, diagnostics-capable, for contacts (wired/ not wired), NAMUR encoder, 3/4-wire BERO, with chatter monitoring; Pulse extension, Open-circuit detection Connection IM 153-2 required | 6AG1321-7TH00-4AB0 |
| Module DO | |
| SIPLUS S7-300 SM 322 (-1BF01) -25…+70°C with conformal coating based on 6ES7322-1BF01-0AA0. Digital output SM 322, isolated, 8 DO, 24 V DC, 2A, 1x 20-pole | 6AG1322-1BF01-2XB0 |
| SIPLUS S7-300 SM 322-20-pole -25…+70 °C With conformal coating based on 6ES7322-1BH01-0AA0 . Digital output Isolated 16 DQ, 24 V DC, 0.5 A, total current 4 A/group (8 A/module) | 6AG1322-1BH01-2AA0 |
| SIPLUS S7-300 SM 322 32 DQ 40-pole -25…+70 °C With conformal coating based on 6ES7322-1BL00-0AA0 . Digital output Isolated, 32 DQ, 24 V DC, 0.5 A, 1x 40-pole, total current 4 A/group (16 A/module) | 6AG1322-1BL00-2AA0 |
| SIPLUS S7-300 SM 322 8DO 48-125V -25…+70°C with conformal coating based on 6ES7322-1CF00-0AA0 . Digital output isolated, 8 DO, 48-125 V DC, 1.5A, 1x 20-pole | 6AG1322-1CF00-7AA0 |
| SIPLUS S7-300 SM 322 8DO 120/ 220 -40…+70°C with conformal coating based on 6ES7322-1FF01-0AA0 . Digital output isolated, 8 DO, 120/230 V AC, 1 A, 1x 20-pole | 6AG1322-1FF01-7AA0 |
| SIPLUS S7-300 SM 322 16DO -40…+70°C with conformal coating based on 6ES7322-1FH00-0AA0 . Digital output Isolated 16 DO, 120/230 V AC, 1 A, 1x 20-pole | 6AG1322-1FH00-7AA0 |
| SIPLUS S7-300 SM 322-40-pole -25…+60 °C With conformal coating based on 6ES7322-1HF10-0AA0 . Digital output Isolated 8 DQ (relay), 1x 40-pole, 24 V DC, 5 A or 230 V AC, 5 A, connectors with spring-loaded terminal can be used as of 6ES7392-1BM01-0AA0 | 6AG1322-1HF10-2AA0 |
| SIPLUS S7-300 SM 322-20-pole -40…+70 °C With conformal coating based on 6ES7322-1HH01-0AA0 . Digital output optically isolated 16 DQ, relay contacts | 6AG1322-1HH01-2AA0 |
| SIPLUS S7-300 SM 322 8DO with conformal coating based on 6ES7322-5FF00-0AB0 . Digital output isolated, 8 DO, 120/230 V AC, 2A, with single rooting/channel and selectable failure mode, 1x 40-pole | 6AG1322-5FF00-4AB0 |
| SIPLUS S7-300 SM 322 8RO 40pol with conformal coating based on 6ES7322-5HF00-0AB0 . Digital output isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 120-230 V AC, 5 A with RC filter overvoltage protection | 6AG1322-5HF00-4AB0 |
| SIPLUS S7-300 SM 322-20-pole -25…+60 °C based on 6ES7322-8BF00-0AB0 | 6AG1322-8BF00-2AB0 |
| Module DI/DO | |
| SIPLUS S7-300 SM 323-20-pole -40…+70 °C With conformal coating based on 6ES7323-1BH01-0AA0 . Digital module Isolated 8 DI and 8 DQ, 24 V DC, 0.5 A Total current 2 A | 6AG1323-1BH01-2AA0 |
Module AI/AO cho S7-300
Module AI/AO tiêu chuẩn
| Module AI | |

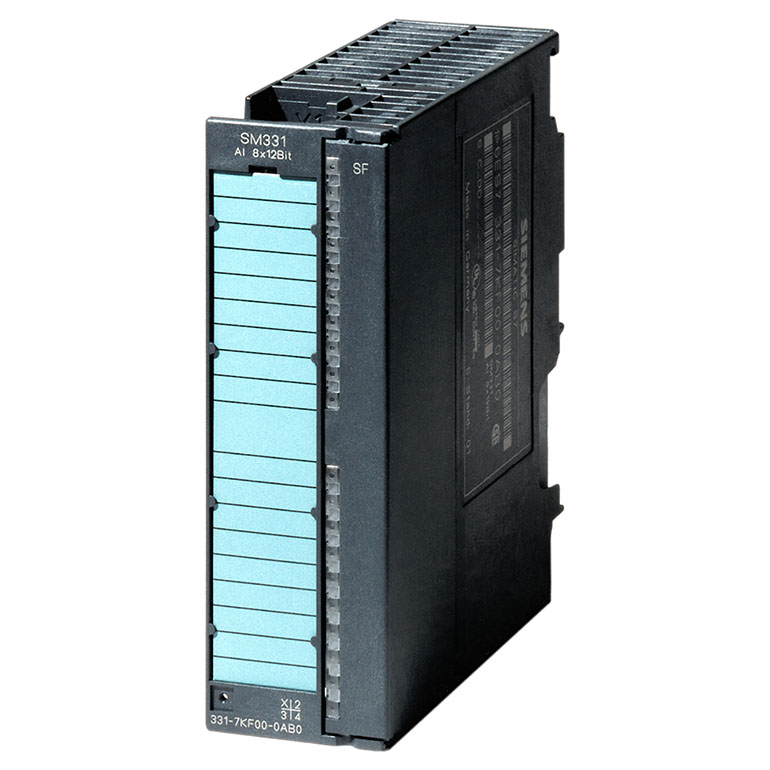

| SIMATIC S7-300, Analog input SM 331, Isolated 8 AI, resolution 13 bits U/I/resistor/Pt100, NI100, NI1000, LG-NI1000, PTC/KTY, 66 ms conversion time; 1x 40-pole | 6ES7331-1KF02-0AB0 |
| SIMATIC S7-300, Analog input SM 331, isolated, 8 AI, resolution 14 bit, 0.052 ms/channel current, Voltage alarm, diagnostics, 1x 20-pole, suitable for isochronous mode Improved bus cycle time for isochronous mode | 6ES7331-7HF01-0AB0 |
| SIMATIC S7-300, Analog input SM 331, isolated, 2 AI, Resolution 9/12/14 bits, U/I/thermocouple/resistor, alarm, diagnostics, 1x 20-pole, Removing/inserting with active backplane bus | 6ES7331-7KB02-0AB0 |
| SIMATIC S7-300, Analog input SM 331, isolated, 8 AI, Resolution 9/12/14 bits, U/I/thermocouple/resistor, alarm, diagnostics, 1x 20-pole Removing/inserting with active backplane bus | 6ES7331-7KF02-0AB0 |
| SIMATIC S7-300, Analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit (55ms), Single rooting (50 V COM.), 1x 40-pole | 6ES7331-7NF00-0AB0 |
| SIMATIC S7-300, Analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit, Single rooting (60 V COM.), 4-channel operation: 10 ms, 8-channel operation: 23-95ms, 1x 40-pole | 6ES7331-7NF10-0AB0 |
| SIMATIC S7-300, Analog input SM 331, single channel Isolated 250 V AC, 6 AI thermocouples Type B, E, J, K, L, N, R, S, T Voltage: +/-25MV to +/-1V 16 bit, 50ms, 1x 40-pole | 6ES7331-7PE10-0AB0 |
| SIMATIC S7-300, Analog input SM 331, isolated, 2/3/4-wire, 8 AI, Resistor, Pt100/200/1000 NI100/120/200/500/1000, CU10, characteristics according to GOST 16 (internal 24) bit, 50ms, 1x 40-pole | 6ES7331-7PF01-0AB0 |
| SIMATIC S7-300, Analog input SM 331, isolated, 8 AI thermocouples Type B, E, J, K, L, N, R, S, T TXK/TXK (L) according to GOST 16 bit, 50ms, 1x 40-pole | 6ES7331-7PF11-0AB0 |
| Module AO | |
| SIMATIC S7-300, Analog output SM 332, isolated, 2 AO, U/I; resolution 11/12 bits, 20-pole, Removing/inserting with active backplane bus possible | 6ES7332-5HB01-0AB0 |
| SIMATIC S7-300, Analog output SM 332, isolated, 4 AO, U/I; diagnostics; resolution 11/12 bits, 20-pole, removing and inserting possible with active backplane bus | 6ES7332-5HD01-0AB0 |
| SIMATIC S7-300, Analog output SM 332, isolated, 8 AO, U/I; diagnostics; resolution 11/12 bits, 40-pole, removing and inserting possible with active backplane bus | 6ES7332-5HF00-0AB0 |
| SIMATIC S7-300, Analog output SM 332, isolated by channel, 4 AI, Resolution 16 bit, 0-10 V, 1-5 V, +/-10 V, +/-20 mA, 0/4-20mA, 20-pole, suitable for isochronous mode improved bus cycle times for the isochronous mode | 6ES7332-7ND02-0AB0 |
| Module AI/AO | |
| SIMATIC S7-300, Analog module SM 334, Non-isolated 4 AI/2 AO, 1x 20-pole, Removing and inserting possible with active backplane bus | 6ES7334-0CE01-0AA0 |
| SIMATIC S7-300, Analog module SM 334, isolated, 4 AI/2 AO, 12 bit, 0-10 V f. Pt100 (climatic range -120-155 degrees) and 10 kOhm measuring range, 1x 20-pole | 6ES7334-0KE00-0AB0 |
SIPLUS Moduel AI/AO
| Module AI | |
| SIPLUS S7-300 SM331 8AE -25 … +70°C with conformal coating based on 6ES7331-1KF02-0AB0 . OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, PTC / KTY, 66 MS MODULE UPDATE, 1 X 40 PIN | 6AG1331-1KF02-7AB0 |
| SIPLUS S7-300 SM 331-20-pole -25…+70°C with conformal coating based on 6ES7331-7KB02-0AB0 . Analog input isolated 2 AI, Resolution 9/12/14 bits, U/I/thermocouple/resistor, alarm, diagnostics, 1x 20-pole, Removing/inserting with active backplane bus | 6AG1331-7KB02-2AB0 |
| SIPLUS S7-300 SM 331 20-pole -25…+70 °C With conformal coating Based on 6ES7331-7KF02-0AB0 . Analog input isolated 8 AI, resol. 9/12/14 bits, U/I/thermocouple/resistor, alarm, diagnostics, 1x 20-pole Removing/inserting with active backplane bus | 6AG1331-7KF02-2AB0 |
| SIPLUS S7-300 SM 331 40-pole -25…+70 °C With conformal coating based on 6ES7331-7NF00-0AB0 . Analog input isolated 8 AI; +/-5/10 V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit (55 ms), single rooting (50 V com.) | 6AG1331-7NF00-2AB0 |
| SIPLUS S7-300 SM 331 8AI 40-pole -25…+60°C with conformal coating based on 6ES7331-7NF10-0AB0 . Analog input isolated, 8 AI; +/-5/10 V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit, Single rooting (60 V COM.), 4-channel operation: 10 ms, 8-channel operation: 23-95ms, 1x 40-pole | 6AG1331-7NF10-2AB0 |
| SIPLUS S7-300 SM 331 8AI with conformal coating based on 6ES7331-7PF01-0AB0 . Analog input isolated, 2/3/4-wire, 8 AI, Resistor, Pt100/200/1000 NI100/120/200/500/1000, CU10, characteristics according to GOST 16 (internal 24) bit, 50ms, 1x 40-pole | 6AG1331-7PF01-4AB0 |
| SIPLUS S7-300 SM 331 8AI 40-pole with conformal coating based on 6ES7331-7PF11-0AB0. Analog input isolated, 8 AI thermocouples Type B, E, J, K, L, N, R, S, T TXK/TXK (L) according to GOST 16 bit, 50ms, 1x 40-pole | 6AG1331-7PF11-4AB0 |
| Module AO | |
| SIPLUS S7-300 SM 332-20-pole -25…+70 °C With conformal coating based on 6ES7332-5HB01-0AB0 . Analog output Isolated, 2 AQ, U/I; Resolution 11/12 bit 20-pole, removing/inserting with active backplane bus possible | 6AG1332-5HB01-2AB0 |
| SIPLUS S7-300 SM 332 4AO U/I -25…+70°C with conformal coating based on 6ES7332-5HD01-0AB0 . Analog output SM 332, isolated, 4 AO, U/I; diagnostics; resolution 11/12 bits, 20-pole, removing and inserting possible with active backplane bus | 6AG1332-5HD01-7AB0 |
| SIPLUS S7-300 SM332 40POLE -25…+70°C with conformal coating based on 6ES7332-5HF00-0AB0 . ANALOG OUTPUT OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS | 6AG1332-5HF00-2AB0 |
| SIPLUS S7-300 SM 332 4AO with conformal coating based on 6ES7332-7ND02-0AB0 . Analog output isolated by channel, 4 AI, Resolution 16 bit, 0-10 V, 1-5 V, +/-10 V, +/-20 mA, 0/4-20mA, 20-pole, suitable for isochronous mode operation improved bus cycle times for+ the isochronous mode | 6AG1332-7ND02-4AB0 |
| Module AI/AO | |
| SIPLUS S7-300 SM 334 4AI 2AO -25…+70°C with conformal coating based on 6ES7334-0KE00-0ab0 . Analog module isolated, 4 AI/2 AO, 12 bit, 0-10 V for Pt100 (climatic range -120-155°C) and 10 kOhm measuring range, 1x 20-pole | 6AG1334-0KE00-7AB0 |
Fail-safe Module I/O
Fail-safe Module I/O tiêu chuẩn
| SIMATIC S7, Digital input SM 326, F-DI 24×24 V DC, Fail-safe digital input for SIMATIC S7 F-systems with diagnostic alarm, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 40-pole | 6ES7326-1BK02-0AB0 |
| SIMATIC S7, Digital input SM 326, 8 DI; 24 V DC, NAMUR, fail-safe NAMUR input for SIMATIC S7 F-systems, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 40-pole | 6ES7326-1RF01-0AB0 |
| SIMATIC S7, digital output SM 326, F-DO10x 24 V DC/2A PP, fail-safe digital output for SIMATIC S7F systems, with diagnostic alarm, LVV, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 40-pole | 6ES7326-2BF10-0AB0 |
| SIMATIC S7, Digital output SM 326, F-DO 8×24 V DC/2A PM fail-safe digital output Switching to P-M potential up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 40-pole | 6ES7326-2BF41-0AB0 |
| SIMATIC S7, Analog input SM 336, 6 AI; 15 bit; fail-safe analog inputs for SIMATIC Safety, with HART support, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 20-pole | 6ES7336-4GE00-0AB0 |
| SIMATIC S7, Safety protector between F and standard modules With redundant ET 200M interface modules, use only with partition | 6ES7195-7KF00-0XA0 |
SIPLUS Fail-safe Module I/O
| SIPLUS S7-300 SM 326F DI24 40-pole -25…+60°C (70°C with forced convection) with conformal coating based on 6ES7326-1BK02-0AB0 . Digital input F-DI 24×24 V DC Fail-safe digital input for SIMATIC S7 F-systems with diagnostic alarm | 6AG1326-1BK02-2AB0 |
| SIPLUS S7-300 SM 326F DI8 NAMUR for medial exposure with conformal coating based on 6ES7326-1RF01-0AB0 . Digital input SM 326, 8 DI; 24 V DC, NAMUR, fail-safe NAMUR input for SIMATIC S7 F-systems, up to Category 4 (EN 954-1)/ SIL3 (IEC 61508)/PLE (ISO 13849), 1x 40-pole | 6AG1326-1RF01-4AB0 |
| SIPLUS S7-300 SM 326 10F-DO -25…+60°C (70°C with forced convection) with conformal coating based on 6ES7326-2BF10-0AB0 . Digital output 24 V DC/2A PP, fail-safe digital output for SIMATIC S7F systems, with diagnostic alarm, LVV, 1x 40-pole | 6AG1326-2BF10-2AB0 |
| SIPLUS S7-300 SM 326F DO8 -25…+60°C with conformal coating based on 6ES7326-2BF41-0AB0 . Digital output F-DO 8x 24 V DC/2A PM fail-safe digital output Sinking-sourcing up to Category 4 (EN 954-1), SIL 3 (IEC 61508) | 6AG1326-2BF41-2AB0 |
| SIPLUS S7-300 SM336 F 6AI 15 bit -25…+60 °C (70 °C with forced convection) With conformal coating Based on 6ES7336-4GE00-0AB0 . Fail-safe analog inputs For SIMATIC Safety, with HART support, up to Category 4 (EN 954-1) /SIL3 (IEC 61508)/ PLE (ISO 13849), 1x 20-pole | 6AG1336-4GE00-2AB0 |
| SIMATIC S7-300 safety protector -25…+60°C with conformal coating based on 6ES7195-7KF00-0XA0 . Safety protector between F and standard modules With redundant ET 200M interface modules, use only with partition | 6AG1195-7KF00-2XA0 |
Ex Module I/O
Ex Module I/O tiêu chuẩn
| SIMATIC S7, digital input SM 321, isolated, 4 DI; 24 V DC, NAMUR/DIN 19234, for signals from the hazardous area, diagnostics-capable, PTB tested | 6ES7321-7RD00-0AB0 |
| SIMATIC S7, digital output SM 322, isolated, 4 DO, 15 V / 20 mA 1 x 20-pole, for signals from the hazardous area, diagnostics-capable, PTB tested | 6ES7322-5RD00-0AB0 |
| SIMATIC S7, digital output SM 322, isolated, 4 DO, 24 V DC, 10 mA, 1 x 20-pole, for signals from the hazardous area, diagnostics-capable, PTB tested | 6ES7322-5SD00-0AB0 |
| SIMATIC S7, analog input SM 331, isolated, 4 AE; 0/4 to 20 mA, 1 x 20-pole, for signals from the hazardous area, diagnostics-capable, PTB tested | 6ES7331-7RD00-0AB0 |
| SIMATIC S7, analog input SM 331, isolated, 8 AI thermocouples/4 AI Pt100, for signals from the hazardous area, diagnostics-capable, PTB tested 1 x 20-pole | 6ES7331-7SF00-0AB0 |
| SIMATIC S7, analog output SM 332, isolated, 4 AA; 0/4 to 20 mA, 20-pole, for signals from the hazardous area, diagnostics-capable, PTB tested | 6ES7332-5RD00-0AB0 |
SIPLUS Ex Module I/O
| SIPLUS S7-300 SM 321 4DI NAMUR for medial exposure with conformal coating based on 6ES7321-7RD00-0AB0 . Digital input Isolated 4 DI; 24 V DC, NAMUR/DIN 19234, for signals from the hazardous area, diagnostics-capable, PTB tested | 6AG1321-7RD00-4AB0 |
| SIPLUS S7-300 SM 331 4AI -25…+60°C -25…+70°C (only 4-wire) with conformal coating based on 6ES7331-7RD00-0AB0 | 6AG1331-7RD00-2AB0 |
| SIPLUS S7-300 SM 331-20-pole medial exposure with conformal coating based on 6ES7331-7SF00-0AB0 without PTB approval | 6AG1331-7SF00-4AB0 |
Interface Module (IM)
| SIMATIC S7-300, Connection IM 360 in central rack for connection of max. 3 expansion racks, with C-bus | 6ES7360-3AA01-0AA0 |
| SIMATIC S7-300, Connection IM 361 in expansion rack for connection to central rack (IM360), supply voltage 24 V DC, with C-bus | 6ES7361-3CA01-0AA0 |
| SIMATIC S7-300, Connection IM 365 for connection of an extension rack without C bus, 2 modules+ connecting cable 1 m | 6ES7365-0BA01-0AA0 |
| SIPLUS S7-300 IM 365 -25…+60 °C based on 6ES7365-0BA01-0AA0. Connection IM 365 for connection of an extension rack, without C bus, 2 modules+ connecting cable 1 m | 6AG1365-0BA01-2AA0 |
Function Module (FM)
Function Module tiêu chuẩn
| SIMATIC S7-300, Counter module FM 350-1 for S7-300, Counter functions up to 500 kHz 1 channel for connection of 5 V and 24 V incremental encoders Isochronous mode; Measuring range types incl. configuration package on CD | 6ES7350-1AH03-0AE0 |
| SIMATIC S7-300, Counter module FM 350-2, 8 channels, 20 kHz, 24 V encoder for counting, frequency measurement, speed measurement, period duration measurement, dosing incl. configuration package and electronic documentation on CD-ROM | 6ES7350-2AH01-0AE0 |
| SIMATIC S7-300, positioning module FM 351 for rapid/slow traverse Drives incl. configuration package on CD | 6ES7351-1AH02-0AE0 |
| SIMATIC S7-300, cam controller, FM 352, electronic incl. configuration package on CD | 6ES7352-1AH02-0AE0 |
| SIMATIC S7-300, FM352-5 with NPN output, High Speed Boolean Processor, for high-speed linking, 12 DI, 8 DO, 1 encoder interface for RS422 incr./SSI encoder | 6ES7352-5AH01-0AE0 |
| SIMATIC S7-300, FM352-5 with PNP output, High Speed Boolean Processor, for high-speed linking, 12 DI, 8 DO, 1 encoder interface for RS422 incr./SSI encoder | 6ES7352-5AH11-0AE0 |
| SIMATIC S7-300, Control Unit FM 355 C, 4 channels, continuous, 4 AI+8 DI+4 AO incl. multi-language configuration package, Manual and Getting Started (de, de, fr, en fr, it) on CD-ROM | 6ES7355-0VH10-0AE0 |
| SIMATIC S7-300, Control Unit FM 355 S, 4 channels, Step and pulse, 4 AI+8 DI+8 DO incl. multi-language configuration package, Manual and Getting Started (de, de, fr, en fr, it) on CD-ROM | 6ES7355-1VH10-0AE0 |
| SIMATIC S7-300, temperature Control Unit FM 355-2 C, 4 channels, continuous, 4 AI+8 DI+4 AO incl. multi-language configuration package, Manual and Getting Started (de, de, fr, en it) on CD-ROM | 6ES7355-2CH00-0AE0 |
| SIMATIC S7-300, temperature Control Unit FM 355-2S, 4 channels, Step and pulse, 4 AI+8 DI+8 DO incl. multi-language configuration package, Manual and Getting Started (de, de, fr, en it) on CD-ROM | 6ES7355-2SH00-0AE0 |
| SIMATIC S7-300, Signal module for 3 SSI encoders for reading in the position value with 2 FREEZE inputs, 1x 20-pole Supports isochronous mode | 6ES7338-4BC01-0AB0 |
| SIMATIC S7-300, Interface module IM174, for connection of analog drives and stepper drives on isochronous PROFIBUS to Motion Control systems 4 channels (4 encoder inputs, 4 AO), configurable with STEP 7 V5.4 SP4 | 6ES7174-0AA10-0AA0 |
| SIWAREX U WEIGHING ELECTRONICS (SINGLE CHANNEL VERSION) * FOR CONNNECTING ONE SCALE * FOR SIMATIC S7-300 AND ET200M * RS232 INTERFACE FOR CONNECT. OF A PC * TTY INTERFACE FOR REMOTE DISPLAY CONNECTION WITH BUS CONNECTOR | 7MH4950-1AA01 |
| SIWAREX U WEIGHING ELECTRONICS (TWO-CHANNEL VERSION) * FOR CONNNECTING TWO SCALES * FOR SIMATIC S7-300 AND ET200M * RS232 INTERFACE FOR CONNECT. OF A PC * TTY INTERFACE FOR REMOTE DISPLAY CONNECTION WITH BUS CONNECTOR | 7MH4950-2AA01 |
| SIWAREX FTA WEIGHING ELECTRONIC WITH VERIFICATION CAPABILITY.FOR AUTOMATIC AND NON AUTOMATIC . WEIGHING APPLICATIONS. USABLE FOR S7-300 AND ET200M. EC-CERTIFICATE OF CONFORMITY 3 X 6000D. . APPLICATIONS: . RAPID DOSING, FILLING/BAGGING AND LOADING. ATTENTION: FOR LEGAL FOR TRADE APPLICATIONS PLEASE FOLLOW THE LOCAL LAWS APPLYING IN THE COUNTRY OF LEGAL VERIFICATION ! – APPROPRIATE MMC-CARD: ONLY FOR LEGAL-FOR-TRADE APPLICATIONS R76, R51 AND R107: 7MH4900-2AY20 | 7MH4900-2AA01 |
| SIWAREX Micro Memory Card for SIWAREX FTA,3,3 V NFLASH;32 MB only for legal-for-trade applications R76,R51 and R107 | 7MH4900-2AY21 |
| SIWAREX FTC WEIGHING ELECTRONIC FOR FORCE MEASUREMENT, BELT SCALE, LOSS-IN-WEIGHT SCALE AND FLOW RATE METER. WITHOUT VERIFICATION CAPABILITY USABLE FOR S7-300 AND ET200M | 7MH4900-3AA01 |
| SIMATIC S7-300, Front connector for signal modules with screw contacts, 20-pole | 6ES7392-1AJ00-0AA0 |
| SIMATIC S7-300, Front connector with screw contacts, 40-pole | 6ES7392-1AM00-0AA0 |
| SIMATIC S7-300, Front connector for signal modules with spring-loaded contacts, 20-pole | 6ES7392-1BJ00-0AA0 |
| SIMATIC S7-300, Front connector for signal modules with spring-loaded contacts, 40-pole | 6ES7392-1BM01-0AA0 |
| SIFLOW FC070 24V STANDARD SIMATIC S7-300 FUNCTION MODULE 40MM ENCLOSURE IP20 24V DC MODBUS FREQ./PULSE OUTPUT | 7ME4120-2DH20-0EA0 |
| SIFLOW FC070 24V EX CT VERSION SIMATIC S7-300 FUNCTION MODULE 80MM ENCLOSURE IP20 24V DC MODBUS FREQ./PULSE OUTPUT WITH (EEXia) IIC APPROVAL | 7ME4120-2DH21-0EA0 |
SIPLUS Function Module
| SIPLUS S7-300 FM350-1 -25…+60 °C with conformal coating based on 6ES7350-1AH03-0AE0. Counter module Counter functions up to 500 kHz 1 channel for connection of 5 V and 24 V incremental encoders Isochronous mode; Measuring range types incl. configuration package auf CD-ROM | 6AG1350-1AH03-2AE0 |
| SIPLUS S7-300 FM350-2 8 channels for medial exposure with conformal coating based on 6ES7350-2AH01-0AE0 . Counter module FM 350-2, 8 channels, 20 kHz, 24 V encoder for counting, frequency measurement, speed measurement, period duration measurement, dosing incl. configuration package and Electronic documentation on CD-ROM | 6AG1350-2AH01-4AE0 |
| SIPLUS SIWAREX U electronic weighing system for medial exposure based on 7MH4950-2AA01 | 6AG1950-2AA01-4AA0 |
Communication Module (CM)
Communication Module tiêu chuẩn
| SIMATIC S7-300, CP 340 Communications processor with RS232C interface (RS-232-C) incl. configuration package on CD | 6ES7340-1AH02-0AE0 |
| SIMATIC S7-300, CP 340 Communications processor with 20 mA interface (TTY) incl. configuration package on CD | 6ES7340-1BH02-0AE0 |
| SIMATIC S7-300, CP 340 Communications processor with RS 422/485 interface incl. configuration package on CD | 6ES7340-1CH02-0AE0 |
| SIMATIC S7-300, CP 341 Communications processor with RS232C interface (RS-232-C) incl. configuration package on CD | 6ES7341-1AH02-0AE0 |
| SIMATIC S7-300, CP 341 Communications processor with 20 mA interface (TTY) incl. configuration package on CD | 6ES7341-1BH02-0AE0 |
| SIMATIC S7-300, CP 341 Communications processor with RS422/485 interface incl. configuration package on CD | 6ES7341-1CH02-0AE0 |
| SIMATIC S7, MODBUS Master V3.1 single license for 1 installation R-SW, SW and DOCU on CD, HW dongle, Class A, 3 languages (de, de, fr, en fr), executable in STEP 7 V4.02 or higher, reference hardware: CP 341 and CP 441-2 | 6ES7870-1AA01-0YA0 |
| SIMATIC S7, MODBUS Master V3.1 single license for 1 installation R-SW, without SW and without documentation, HW dongle, Class A, 3 languages (de, de, fr, en fr), executable in STEP 7 V4.02 or higher, reference hardware: CP 341 and CP 441-2 | 6ES7870-1AA01-0YA1 |
| SIMATIC S7, MODBUS Slave V3.1 single license for 1 installation R-SW, SW and DOCU on CD, HW dongle, Class A, 3 languages (de, de, fr, en fr), executable in STEP 7 V4.02 or higher, reference hardware: CP 341 and CP 441-2 | 6ES7870-1AB01-0YA0 |
| SIMATIC S7, MODBUS Slave V3.1 single license for 1 installation R-SW, without SW and without documentation, HW dongle, Class A, 3 languages (de, de, fr, en fr), executable in STEP 7 V4.02 or higher, reference hardware: CP 341 and CP 441-2 | 6ES7870-1AB01-0YA1 |
| SIMATIC NET, CP 343-2 Communications processor for Connection of SIMATIC S7-300 and ET 200M to AS-Interface according to AS-Interface Specification V3.0 | 6GK7343-2AH01-0XA0 |
| SIMATIC NET, CP 343-2P Communications processor for Connection of SIMATIC S7-300 and ET 200M to AS-Interface configurable with STEP 7 according to AS-Interface Specification V3.0 | 6GK7343-2AH11-0XA0 |
| Communications processor CP 342-5 for connection of SIMATIC S7-300 to PROFIBUS DP, S5-compatible, PG/OP and S7 communication | 6GK7342-5DA03-0XE0 |
| Communications processor CP 342-5 FO for connection of SIMATIC S7-300 to PROFIBUS DP, S5-compatible, PG/OP and S7 communication | 6GK7342-5DF00-0XE0 |
| Communications processor CP 343-5 for connection of SIMATIC S7-300 to PROFIBUS, FMS, S5-compatible, PG/OP and S7 communication, 12 Mbit/s, Single-width | 6GK7343-5FA01-0XE0 |
| Communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, Multicast, SEND/RECEIVE with and without RFC1006, Fetch/ Write, S7 communication (server), PROFINET IO device integrated 2-port switch ERTEC 200, Module replacement without PG, SNMP diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s | 6GK7343-1CX10-0XE0 |
| Communications processor CP 343-1 for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP, PROFINET IO controller or PROFINET IO device, integrated 2-port switch ERTEC 200, S7 communication, fetch/write, send/receive with and without RFC1006, Multicast DHCP, NTC- CPU Sync, diagnostic, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s | 6GK7343-1EX30-0XE0 |
| Communications processor CP 343-1 Advanced for connection of SIMATIC S7-300 CPU to Industrial Ethernet: PROFINET IO controller a./o. IO device; RT and IRT, MRP, PROFINET CBA; TCP/IP, ISO, UDP, S7 comm., S5-compat. communication (SEND/RECEIVE) with Fetch/Write RFC1006, Multicast Diagnostic extension, SNMP, DHCP, FTP client/server, e-mail, Gigabit-SS1X RJ45 (10/100/1000) PROFINET interface 2x RJ45 (10/100 Mbit); PROFINET CBA; security (firewall/VPN); PROFIenergy | 6GK7343-1GX31-0XE0 |
| Compact Switch Module CSM 377 Connection SIMATIC S7-300 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbit/s unmanaged switch, 4 RJ45 ports, External 24 V DC power supply LED diagnostics, S7-300 module, incl. electron. Equipment Manual on CD-ROM | 6GK7377-1AA00-0AA0 |
| SINAUT ST7, TIM 3V-IE communication module for SIMATIC S7-300 with an RS232 interface for SINAUT communication via a classic WAN and an RJ45 interface for SINAUT communication via an IP-based network (WAN or LAN) | 6NH7800-3BA00 |
| SINAUT ST7, TIM 3V-IE advanced communication module for SIMATIC S7-300 with an RS232 interface for SINAUT communication via a classic WAN and an RJ45 interface for SINAUT communication via an IP-based network (WAN or LAN) | 6NH7800-3CA00 |
| SINAUT ST7, TIM 4R-IE communication module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 interfaces for SINAUT Communication via standard WAN and two RJ45 interfaces for SINAUT communication via IP-based networks (WAN or LAN) | 6NH7800-4BA00 |
| TIM 3V-IE DNP3 communication module for SIMATIC S7-300 with an RS232 interface for DNP3 communication via a classic WAN and an RJ45 interface for DNP3 communication via a IP-based network (WAN or LAN) | 6NH7803-3BA00-0AA0 |
| TIM 4R-IE DNP3 communication module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 Interfaces for DNP3- Communication via standard WAN and two RJ45 interfaces for DNP3 communication via IP-based networks (WAN or LAN) | 6NH7803-4BA00-0AA0 |
| MOBY communication module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector) | 6GT2002-0GA10 |
SIPLUS Communication Module
| SIPLUS S7-300 CP 340 RS232 -25…+70°C based on 6ES7340-1AH02-0AE0 . Communications processor with RS232C interface (RS-232-C) incl. configuration package auf CD-ROM | 6AG1340-1AH02-2AE0 |
| SIPLUS S7-300 CP 340 RS422/485 -25…+60°C conformal coating based on 6ES7340-1CH02-0AE0. Communications processor with RS 422/485 interface incl. configuration package auf CD-ROM | 6AG1340-1CH02-2AE0 |
| SIPLUS S7-300, CP 341 -25…+70 °C with conformal coating based on 6ES7341-1AH02-0AE0 . Communications processor with RS232C interface (RS-232-C) incl. configuration package auf CD-ROM | 6AG1341-1AH02-7AE0 |
| SIPLUS S7-300 CP 341 RS422/485 -25…+70°C with conformal coating based on 6ES7341-1CH02-0AE0 | 6AG1341-1CH02-7AE0 |
| SIPLUS NET CP 343-1 Lean -25…+60°C with conformal coating based on 6GK7343-1CX10-0XE0 . Communications processor for connection of SIMATIC S7-300 to Ind. Ethernet via TCP/IP and UDP, MULTICAST, Send/Receive with and without RFC1006, fetch/ write, S7 communication (server) PROFINET IO device integrated 2-port switch ERTEC 200, Size exchange without PG, SNMP diagnostics, Initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s | 6AG1343-1CX10-2XE0 |
| SIPLUS NET CP 343-1 -25…+70 °C with conformal coating based on 6GK7343-1EX30-0XE0 . Communications processor for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP, PROFINET IO controller or PROFINET IO device, Integrated 2-port switch ERTEC 200, S7 communication, fetch/write, Send/Receive with and without RFC1006, MULTICAST DHCP, NTC-CPU Sync, diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s | 6AG1343-1EX30-7XE0 |
| SIPLUS NET CP 343-1 Advanced with conformal coating based on 6GK7343-1GX31-0XE0 . for connection of the SIMATIC S7-300 CPU to Ind. Ethernet; PROFINET IO controller and/or IO Device; RT and RT and IRT IRT, MRP, PROFINET CBA; TCP/IP ISO, UDP, S7 COM, S5-comp. com., (send/receive) with Fetch/Write with and without RFC 1006, MULTICAST Diagnostic extension,SNMP,DHCP, FTP client/server, e-mail, Gigabit-SS1X RJ45 (10/100/1000) PROFINET-SS 2x RJ45(10/100 Mbit) PROFINET CBA; security (firewall/VPN); PROFIenergy | 6AG1343-1GX31-4XE0 |
| SIPLUS ST7 TIM 3V-IE -25…+70 °C with conformal coating based on 6NH7800-3BA00 . communication module for SIMATIC S7-300 and C7; with one RS232 interface for SINAUT communication via classic WAN and an RJ45 interface for SINAUT communication via an IP-based network (WAN or LAN) | 6AG1800-3BA00-7AA0 |
| SIPLUS ST7 TIM 4R-IE -25…+70 °C with conformal coating based on 6NH7800-4BA00 . communication module for SIMATIC S7-300, S7-400, C7, PC with two RS232/RS485 interfaces for SINAUT Communications via classic WANs and two RJ45 interfaces for SINAUT communication via IP-based networks (WAN or LAN) | 6AG1800-4BA00-7AA0 |
| SIPLUS NET TIM 3V-IE DNP3 for medial exposure -25…+70°C based on 6NH7803-3BA00-0AA0 communication module for SIMATIC S7-300 with an RS232 interface | 6AG1803-3BA00-7AA0 |
| SIPLUS NET TIM 4R-IE DNP3 -25…+70°C with conformal coating based on 6NH7803-4BA00-0AA0. TIM 4R-IE DNP3 communication module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 interfaces for DNP3 communication via classic WANs and two RJ45 interfaces for DNP3 communication via IP- based networks (WAN or LAN) | 6AG1803-4BA00-7AA0 |
Special Module (SP)
| SIMATIC S7-300, Simulator module SM 374, for simulation of 16 inputs or 16 outputs or 8 inputs and 8 outputs 16 switches, 16 LEDs | 6ES7374-2XH01-0AA0 |
| SIMATIC S7-300, dummy module DM 370, Dummy module Use for module replacement | 6ES7370-0AA01-0AA0 |
| SIPLUS S7-300 DM370 -40…+70 °C with conformal coating based on 6ES7370-0AA01-0AA0. Dummy module Use for module replacement | 6AG1370-0AA01-7AA0 |
Ngôn ngữ lập trình PLC S7-300
PLC S7-300 Siemens có thể sử dụng những ngôn ngữ lập trình sau:
- LAD: ngôn ngữ lập trình hình thang (bậc thang)
- STL: ngôn ngữ lập trình liệt kê
- FBD: ngôn ngữ lập trình hình khối
- SCL: có cấu trúc gần giống với ngôn ngữ STL, tuy nhiên được phát triển nhiều hơn. SCL gần giống với các ngôn ngữ bậc cao như Pascal
