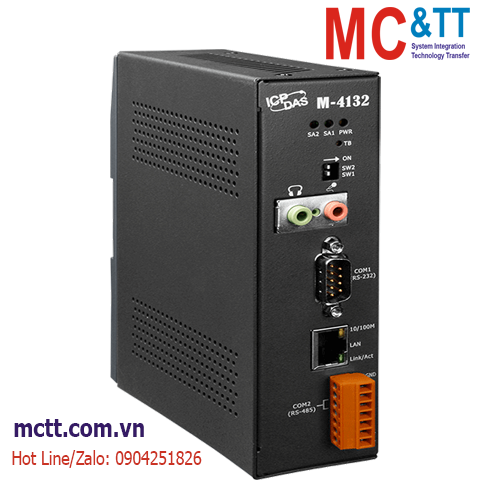

Bộ chuyển đổi 1 cổng RS-232 + 1 cổng RS-485 + Audio sang Ethernet ICP DAS M-4132 CR

Bộ chuyển đổi 1 cổng RS-232 + 1 cổng RS-485 + Audio sang Ethernet ICP DAS M-4132 CR

Sản phẩm đã dừng sản xuất và không có sản phẩm thay thế

Feature

• Support voice streaming on network.
• Provide pair connection on network.
• Web-based administration.
• Linux 2.6 platform.
• Support TCP/IP protocols.
• Provide dynamic DNS function.
• Provide event record and e-mail function.
• Built-in web server, FTP server.
• Built-in self-tuner ASIC chip for RS-485 port.
• 2500 V isolated on RS-485 port.
• Provide LED indicators.
• Robust, fan less design.
• CE/FCC, EMI, RoHS compliance.

Introduction

The M-4132 module is specially designed for the remote maintenance solution with voice streaming. This module provides 2 major technologies on networking: Voice streaming and Pair connection. The Pair connection means that the user can operate remote COM port device via Ethernet TCP/IP protocol just like a local COM port and the Voice streaming means the user can talk to remote operator while operate remote COM-linked devices. Refer to the following graph.

Application

• Remote Maintenance: Establish the remote maintenance system of the equipments sold in the world.
• Broadcasting system: Establish the broadcasting system in the internet or intranet.
• Serial application revolution: Upgrade the original serial application to network application.
