Module đo dòng tải 5 kênh AC đèn chiếu sáng ICP DAS LC-305 CR


  • 5-channel AC Load Current Measurement
  • AC Current Input Ranges from 0 to 5 A
  • Load Current Measurement Accuracy 3%
  • Dual Watchdog
  • Support DCON and Modbus RTU Protocol
  • Tiny Form Factor with Easy Screw Mounting

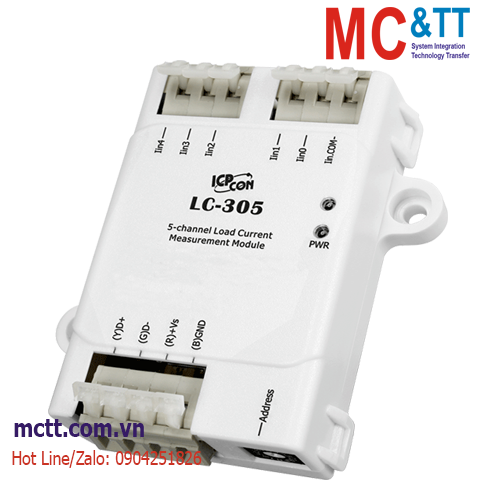

The LC-305 is a 5-channel AC Load Current Measurement Module. LC-305 is fully RoHS-compliant and has qualification for 4 kV ESD protection and 2000 VDC intra-module isolation is also provided. When required, communication with the LC-305 is programmable based on the Modbus RTU protocol, and an added benefit is that different addresses can be set via hardware configuration. The module can measure the load current of each lamp to verify if the lamp is normal or failed; check if the bulb begins to fade and needs to be replaced; and see if there is carbon-buildup depositing on the relay contacts which may makes the relay become sticky.



EMS Protection
EFT (IEC 61000-4-4) ±4 kV for power and communication
ESD (IEC 61000-4-2) ±4 kV contact for each terminal
LED Indicators
Status 1 LED as Power Indicator
AC Current Input
Channels 5
Wiring Single ended
Accuracy 3% of FSR
Frequency 50/60 Hz
Current 0 ~ 5 A
Max. Load Current 10 A/Module COM point
Max. Single Load Current 5 A at 25°C
Data Update Rate 1 Second
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1)
Protocol Modbus RTU or DCON
Reverse Polarity Protection Yes
Input Range 10 ~ 30 VDC
Consumption 0.7 W Max.
Dimensions (mm) 70 x 83 x 29 (W x L x H)
Installation Screw Mounting/DIN Rail mount
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 95% RH, Non-condensing




Ordering Information

LC-305     CR  5-channel AC Load Current Measurement Module (RoHS)
