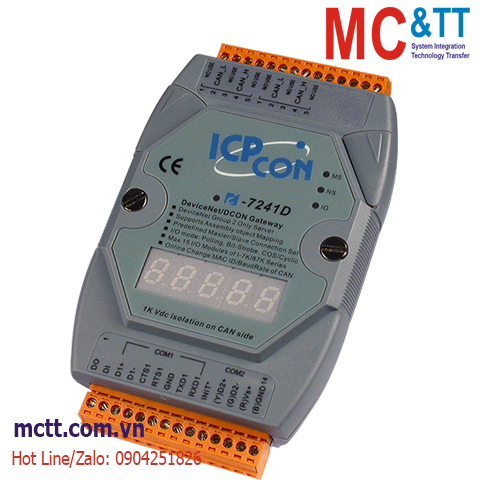

Bộ chuyển đổi Gateway DeviceNet Slave sang DCON Master ICP DAS I-7241D-G CR
Feature
• Group two only server DeviceNet subscriber
• Support Predefined Master/slave Connection Set
• Dynamic Assembly Objects Mapping
• Support Offline Connection Set, Device Heartbeat message and Device Shutdown message
• Provide Assembly object
• Dynamic Product EDS File
• I/O operating modes: Polling, Bit-Strobe, Change of State/Cyclic
• Support max 15 I-7K/I-87K IO modules
• Explicit & I/O length: 240 bytes max.
• Provide friendly Utility to configure
• Baud Rate: 125Kb, 250Kb, 500Kb
• On-line change baud rate and MAC ID
• 7-segmemt LED to show operation mode, MAC ID, baud rate and error code
Introduction
The I-7241D is the communication gateway between DeviceNet and DCON protocols. It is a DeviceNet slave device in the DeviceNet network, which functions as a "Group 2 Only Slave" device, and supports "Predefined Master/slave Connection Set". In the DCON network, the I-7241D is a DCON master and can access the data of the I-7000 or I-87k series modules. The utility software is given to configure the device parameters and build EDS file for the DeviceNet slave device. Through the I-7241D, the DeviceNet master can quickly integrate the I-7000 and I-87K series modules into the DeviceNet network.
Application
• Control System
• Building Automation
• Factory Automation
• Distributed data acquisition
Specifications
| CPU Module |
| CPU |
80188, 40 MHz or compatible |
| EEPROM |
16 KB |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x Power
2 x DeviceNet status |
| COM Ports |
| Ports |
1 x RS-232 (Utility Port)
1 x RS-485 (DCON) |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Protocol |
RS-485 (DCON) |
| Parity |
None, Even, Odd |
| Data Bit |
7, 8 |
| Stop Bit |
1, 2 |
| DeviceNet |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
1 |
| Connection Supported |
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
1 connection for COS/Cyclic I/O |
| Isolation |
1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Specification |
Volume I, Release 2.0 & Volume II, Release 2.0 |
| Shutdown Message |
Yes |
| Heartbeat Message |
Yes |
| Subscribe |
Group 2 Only Server |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
3W |
| Mechanical |
| Dimensions (mm) |
72 x 122 x 33 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7241D-G CR |
DeviceNet Slave / DCON Master Gateway (RoHS) |
