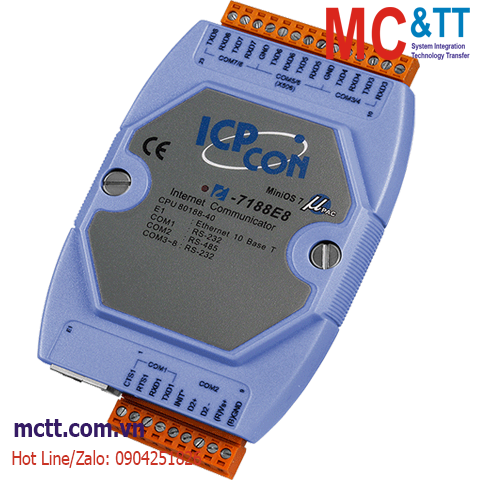

Bộ lập trình chuyển đổi 7 cổng RS-232 + 1 cổng RS-485 sang Ethernet ICP DAS I-7188E8 CR
The I-7188EN series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the I-7188EN series into standard COM ports on a computer. By virtue of its protocol independence, a small-core OS and high flexibility, the I-7188EN series is able to meet the demands of every network-enabled application.
The I-7188EN series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in high-performance MiniOS7 boots the I-7188EN up in just one second and gives you the fastest responses.
The I-7188E8(D) is equipped with 7 RS-232 ports and 1 RS-485 port. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
|CPU||80188, 40MHz or compatible|
|Ports||1 x RS-232 (TXD, RXD, RTS, CTS, GND)
1 x RS-485 (Data+, Data-)
6 x RS-232 (TXD, RXD, GND)
|Baud Rate||115200 bps Max.|
|Parity||Even, Odd, None|
|Data Bit||7, 8|
|Ports||10BASE-T NE2000 compatible Ethernet Controller|
|Reverse Polarity Protection||Yes|
|Input Range||+10 VDC ~ +30 VDC (non-regulated)|
|Dimensions (mm)||123 mm x 72 mm x 33 mm|
|Operating Temperature||-25 °C ~ +75 °C|
|Storage Temperature||-40 °C ~ +80 °C|
|I-7188E8 CR||Programmable Ethernet to 8x serial ports converter (7x RS-232, 1x RS-485) (RoHS)|
