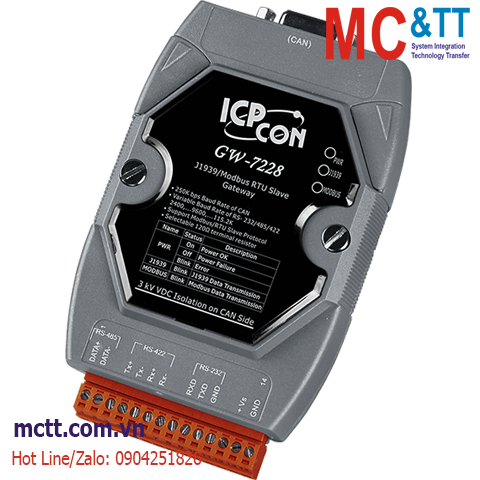

Bộ chuyển đổi J1939 sang Modbus RTU Slave ICP DAS GW-7228-G CR

Features

  • Built-in jumper to select 120 ohm terminal resistor
  • Watchdog inside
  • Transmission and reception of all types of J1939 messages, including PDU1, PDU2, broadcast and destination specific
  • J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes)
  • Support BAM of Connection Management Message
  • Network addresses management
  • Support Modbus RTU slave protocol
  • Configurable for Modbus Network ID(1~250)

Introduction

The GW-7228 is a solution that provides a protocol conversion between J1939 and Modbus RTU. For J1939 network, the GW-7228 supports PDU1, PDU2, broadcast and destination specific type of J1939 messages. From the view of Modbus RTU network, the GW-7228 is a Modbus RTU slave to reply the request from Modbus RTU master. We provide Utility software for users to configure the parameters of J1939 / Modbus RTU of the GW-7228. The application fields can be Diesel power-train applications, In-Vehicle networks for trucks and buses, etc.
The following figure shows the application architecture for the GW-7228

Applications

  • Diesel power-train applications
  • In-Vehicle networks for trucks and buses
  • Truck-Trailer connections
  • Fleet management systems
  • On Board Diagnostics
  • Vehicle Automation

Specifications



LED Indicators
Status PWR / J1939 / MODBUS
COM Ports
Ports 1 x RS-232(TXD, RXD, GND)
1 x RS-422(Tx+, Tx-, Rx+, Rx-)
1 x RS-485(D+, D-)
Baud Rate 9600, 19200, 38400, 57600, 115200
Protocol Modbus RTU
J1939
Ports 1
Baud Rate 250k
Isolation 3000 VDC power protection on CAN side, 2500Vrms photo-couple isolation on CAN bus
Terminal Resistor Jumper for 120 Ω terminal resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Pin Assignment C.I.A. DS-102 (CAN_H=7, CAN_L=2)
Power
Consumption 1.5 W
Mechanical
Dimensions (mm) 108 x 72 x 35 (H x W x L)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

GW-7228-G     CR  J1939/Modbus RTU Slave Gateway included CA-0910 cable (RoHS)
