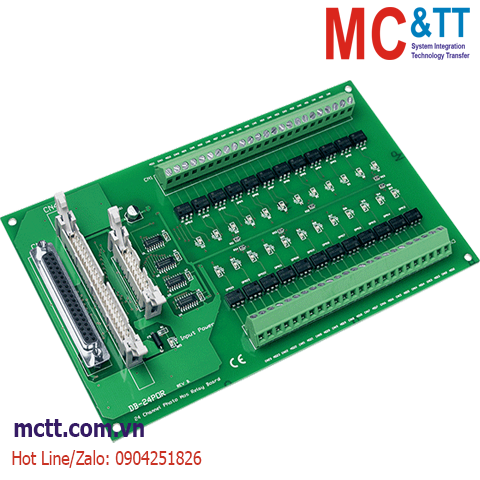

Bo mạch kết nối 24 kênh đầu ra PhotoMOS Relay ICP DAS DB-24POR CR
Feature
- 24 Photo Mos Relay
- One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
- LED’s indicated relay status
- Screw terminals for easy field wiring
- 5,000Vdc optical isolation
Introduction
The DB-24POR has 24 channels of optically isolated Photo-Mos Relay , and OPTO-22 compatible connector
Application
- On/off control
- Energy management
- Test Automation
- Process Control
Specifications
| Relay Output |
| Channels |
24 x FORM A |
| Type |
PhotoMos Relay |
| Contact Rating |
130 mA @ 350 VAC |
| Operate Time |
0.7ms |
| Release Time |
0.05ms |
| Power |
| Consumption |
300 mA @ 5 V |
| Mechanical |
| Dimensions (mm) |
213 mm x 132 mm |
| Environment |
| Operating Temperature |
0 ~ 60°C |
| Storage Temperature |
-20 ~ 70°C |
| Humidity |
5% to 90 % noncondensing |
Datasheet
Documents
Ordering Information
| DB-24POR CR |
24-ch PhotoMOS Relay Board (RoHS)
Include: CA-5015 (Flat Cable, 50-pin, 1.5 M) |
