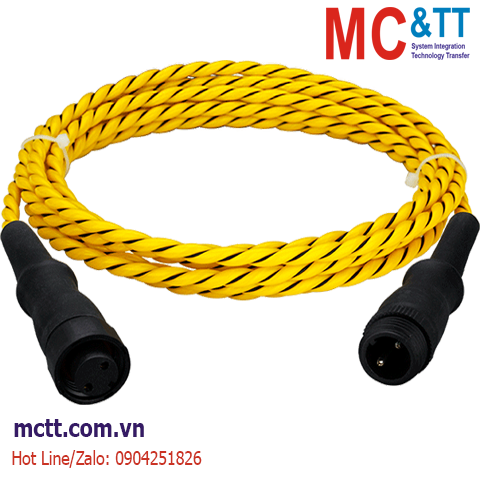

Cáp phát hiện dò rỉ chất lỏng dài 3M ICP DAS CA-LLD-DC100X-L030 CR

Mã sản phẩm: CA-LLD-DC100X-L030

Thương hiệu: ICP DAS

Tình trạng:

Liquids Leak Detection Cable, with cable-break detection and can be connected in series, 3M

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Cáp phát hiện dò rỉ chất lỏng dài 3M ICP DAS CA-LLD-DC100X-L030 CR

Feature

Cable diameter：6mm
Carrier：Fluoropolymer
Sensing wires：2*30 AWG with jacket of conductive fluoropolymer
Maximum continuous operating temperature：70°C

Introduction

The liquids leaks detection cable is designed to detect liquid leaks over a wider area, and the path of the leak is not easily predetermined. It is ideal for open areas. The liquid leaks detection cable can be connected to the liquid supply and return lines directly. It is suitable for larger surface areas with multiple leak points.

The original detection cable CA-LLD-DC100-Lxxx for iSN-101/104 does not provide cable-break detection, and it cannot be connected in series. It is relatively inflexible in use. The following two new functions are provided when the original detection cable is connected with the CA-LLD-DC100X-TR terminal resistor.

1. Cable-break Detection
As long as the signal leader cable or the detection cable is broken, iSN-101/104 can know it instantly and output it to the alarm buzzer of iSN-101/104 simultaneously.

2. Combination of Multiple Detection Cables
The new detection cable has snap-in connectors at both ends, and multiple detection lines can be connected in series to extend the distance. The signal leader cable plus all the detection cables can reach a maximum of 500 meters.
