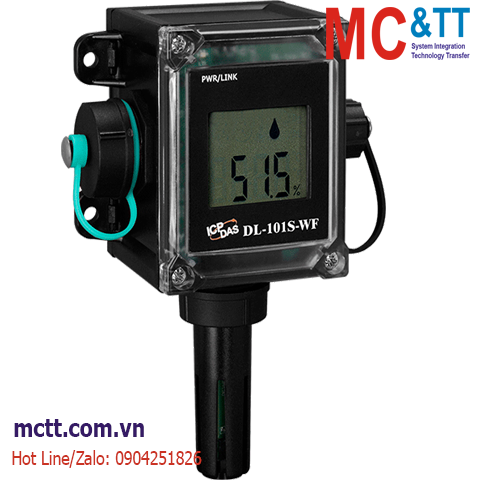

Module đo và hiển thị nhiệt độ + độ ẩm Wi-Fi Modbus TCP ICP DAS DL-101S-WF CR
Feature
- Wi-Fi communication monitoring and confi guration
- Compatible with IEEE 802.11b/g/n standards
- Support Access Point(AP) & Station(STA) modes for wireless networks
- Support Modbus TCP
- Photo MOS Relay output
- LCD Display Shows Temperature, Relative Humidity, Dew Point, Date and Time
- Up to 650,000 data logger records
- Wide power supply range
- IP 67 Protection Approval
Introduction
The DL-1xxS-WF Series Data Logger devices can be used to record temperature, humidity and dew point information, including the date and time stamps for each record, with up to 650,000 downloadable records(CSV) able to be stored. Real-time data can be accessed from anywhere and any time using the PC Utility, Android APP & Web. It includes 2-channel Photo MOS Relay Output using trigger source and range for Alarm Devices. DL-101S-WF include an LCD display, DL-111S-WF include an Illuminance sensor.
DL-1xxS-WF Series have WLAN connection complies with the IEEE802.11b/g/n standards, support Modbus TCP protocol, TCP & HTML, Which makes perfect integration for monitoring or control in SCADA software, HMI Modbus & Utility.
Application
- Transportation of food or pharmaceuticals
- Building and energy management
- Food and beverage industry
- Museums, archives, galleries
- Blood stations, pharmacies
- Warehouses
Specifications
| CPU Module |
| Real Time Clock |
Yes |
| Display |
| LCD Information Displayed |
Temperature (°C and °F), Humidity (RH), Relative Humidity, Date and Time |
| LED Indicators |
| Status |
2 colors LED,
Blue for System status,
Red for Wi-Fi connect status. |
| Temperature Measurement |
| Range |
-20 ~ +60°C (-31 to +176˚F) |
| Resolution |
0.1°C |
| Accuracy |
±0.4°C |
| Humidity Measurement |
| Range |
0 ~ 100% RH |
| Resolution |
0.1% RH |
| Accuracy |
±3% RH @ 20 to 80% RH |
| System |
| Data Logger |
Yes, 650,000 Records |
| Relay Output |
PhotoMOS Relay, Form A x2, SPST
100 VDC @ 1 A |
| Wi-Fi |
| Standard |
IEEE 802.11 b/g/n |
| Mode |
Access Point (AP) & Station (STA) |
| Protocol |
TCP,Modbus TCP, HTTP |
| Encryption |
WEP, WPA/ WPA2-PSK |
| Data Transmission Rate |
2.4 GHz |
| Power |
| Input Range |
+9 ~ 48 VDC with Reverse Protection (+Vs to GND) |
| Consumption |
0.28 W (WiFi Connected Standby) |
| Mechanical |
| Dimensions (mm) |
103 x 135 x 55 (W x L x H) |
| Installation |
DIN-Rail; Wall mounted |
| Ingress Protection Rating |
IP67 |
| Environment |
| Operating Temperature |
-20 ~ +60°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| DL-101S-WF CR |
Wi-Fi communication, Temperature, Humidity and Dew Point Data Logger with LCD Display (Black Cover) (RoHS) (Asia Only) |
