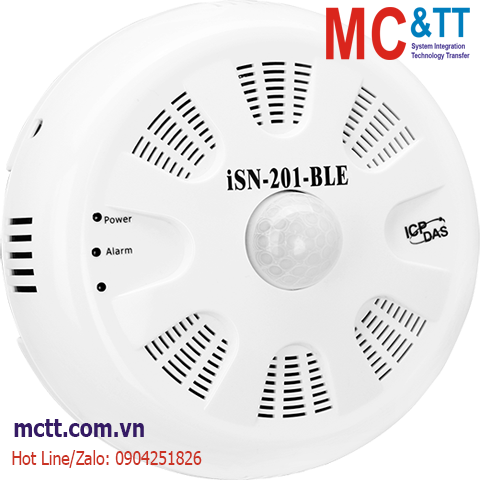

Module đo và hiển thị nhiệt độ + độ ẩm + đo cường độ sáng Lux RS-485/Ethernet/Bluetooth Modbus RTU/TCP & MQTT ICP DAS iSN-201-BLE CR
Feature
- Illuminance Measurement Range: 0 to 20,000 Lux
- Temperature Measurement Range: -20 to +60°C
- Humidity Measurement Range: 0 to 100% RH
- Supports the DCON and Modbus RTU/TCP Protocols
- Supports the MQTT Protocol for Ethernet Interface
- Includes RS-485/Ethernet Communication Interfaces
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
- Supports Web Confi guration and Firmware Update via Ethernet
- Compatible with IEEE802.11b/g/n standards (iSN-201-WF only)
- Support infrastructure and limit-AP modes for wireless networks (iSN-201-WF only)
- Ceiling Mounting
Introduction
The iSN-201 series modules can be used for measuring indoor illumination, temperature and humidity. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/ Bluetooth/ Wi-Fi models. The various models provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/ central control systems.
The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The white minimalist exterior design ensures that it easy to match with interior decoration.
Application
Greenhouse Automation Cloud Management Solution
The WISE-5231 and electric curtain combination with the illumination meter iSN-201-E can easily be setup through a simple web interface and logic control. The two-way interlocking mode integrates the electric curtains and the Building Management System (BMS), and collects environmental sensing data simultaneously. When detecting the indoor temperature or humidity rises or the intensity of sunshine is strong, it will automatically activate the pulling motion of the electric curtain, or enable a personalized scenario to control all curtains or specifi c curtain combinations in the home environment. In addition, the user can edit the scenario and set up the curtain automation at scheduled times.
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal, ±8 kV Air for Random Point |
| LED Indicators |
| Status |
Yes,1 as Power, 1 as Alarm Indicator
1 as Communication Indicator |
| Temperature Measurement |
| Fire Alarm |
65°C (Programmable) |
| Range |
-40 ~ +120°C |
| Resolution |
0.1°C |
| Accuracy |
Typical: ±0.5°C; refer to figure 2 |
| Humidity Measurement |
| Range |
0 ~ 100% RH |
| Resolution |
0.1% RH |
| Accuracy |
Typical: ±3% RH @ 20 ~ 80% RH; refer to figure 1 |
| Illuminance Measurement |
| Range |
0 ~ 20,000 Lux |
| Resolution |
1 Lux |
| Accuracy |
±5% |
| Wi-Fi |
| Transmission Distance (LoS) |
20 m (LOS) |
| Standard Supported |
Bluetooth: BT 4.0 |
| Mode |
Slave |
| Encryption |
AES 128 |
| Relay Output |
| Type |
Power Relay, Form C |
| COM Ports |
| Ports |
1 x RS-485
1 x Ethernet/PoE |
| Protocol |
DCON, Modbus RTU, Modbus TCP, MQTT |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
10 ~ 48 VDC, PoE |
| Consumption |
2.3 W |
| Mechanical |
| Dimensions (mm) |
Ø150 x 53 (Ø x H) |
| Installation |
Ceiling/surface mounted |
| Ingress Protection Rating |
IP20 |
| Environment |
| Operating Temperature |
0 ~ +75 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iSN-201-BLE CR |
Illuminance, Temperature and Humidity Sensor Module (RS-485, Ethernet, Bluetooth) (RoHS) (Asia Only) |
